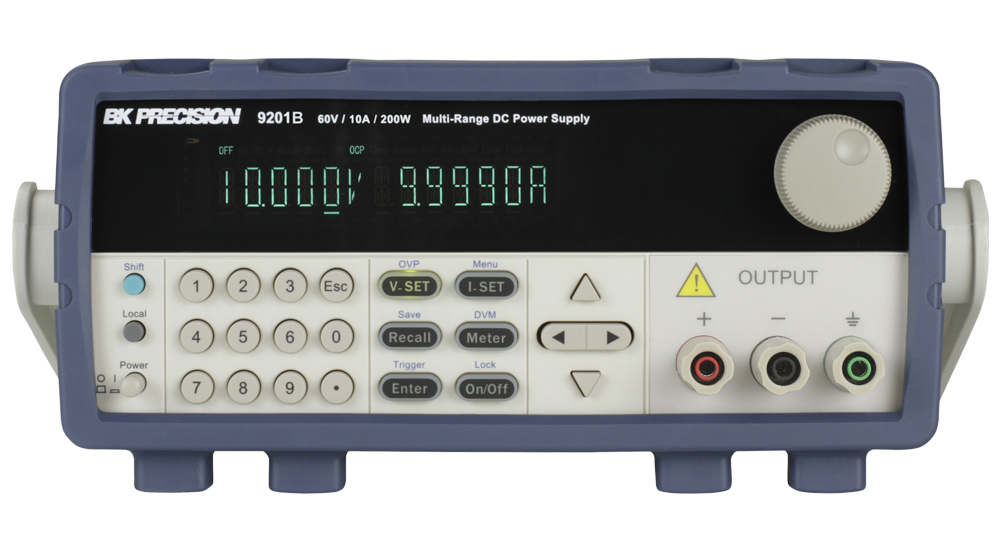

BKPRECISION 9201B Multi-Range Programmable DC Power Supply (0~60V, 0~10A, 200W)
Output Rating:
Voltage: 0 to 60 V
Current: 0 to 10 A
Power: 200 W
Line Regulation:
Voltage: ≤ 0.01% + 5 mV
Current: ≤ 0.05% + 4 mA
Load Regulation:
Voltage: ≤ 0.01% + 8 mV
Current: ≤ 0.1% + 6 mA
Ripple and Noise (20 Hz - 20 MHz):
Voltage: ≤ 8 mVpp
Current: ≤ 6 mArms
Programming Resolution:
Voltage: 1 mV
Current: 0.1 mA
Readback Resolution:
Voltage: 1 mV
Current: 0.1 mA
Programming Accuracy ± (% output + offset):
Voltage: ≤ 0.03% + 5 mV
Current: ≤ 0.1% + 10 mA
Readback Accuracy: ± (% output + offset)
Voltage: ≤ 0.03% + 5 mV
Current: ≤ 0.1% + 10 mA
General:
Remote Sense Compensation: 1 V
DVM Range: 0 to 60 V
DVM Accuracy: 0.02%+10 mV
DVM Resolution: 1 mV
Standard Interface: USB (USBTMC-compliant) and RS232
AC Input: 110/220 VAC (+/- 10 %), 47 Hz - 63 Hz
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Dimensions (W×H×D): 8.45x3.47 x13.96” (214.5x88.2x354.6 mm) 8.45x3.47x17.52” (214.5x88.2x445 mm)
Standard Accessories: User manual, power cord, & certificate of calibration
Optional Accessories: IT-E151 rack mount kit
