Output Voltage: 0-60V (A & B), 2-6.5 V (C)
Output Current: 0-2A (A & B), 5A (C)
Ripple: ≤ 1mVrms, ≤ 3 mA rms
Display: Two 4-digit LED
Resolution: 10 mV, 1 mA
Power Requirements: 120/220/230/240/ VAC
Power Consumption: 350 W
Dimensions: 267 x 145 x 381 mm
Weight: 9.5 kg
Supplied Accessories: User manual, spare fuse and power cord

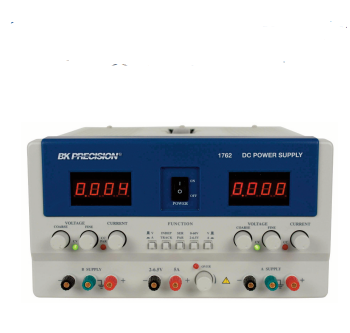

The 1760A, 1761, and 1762 triple output DC power supplies offer three independent outputs with two 4-digit LED displays and 10 mV/1 mA resolution. The coarse and fine voltage control knobs make it an ideal supply for power-sensitive applications. These power supplies also provide overload and reverse polarity protection.
| Model Guide | |||
|---|---|---|---|
| Model | 1760A | 1761 | 1762 |
| Voltage | 0-30 V (A&B), 4-6.5 V (C) | 0-35 V (A&B), 2-6.5 V (C) | 0-60 V (A&B), 2-6.5 V (C) |
| Current | 0-2 A (A&B), 5 A (C) | 0-3 A (A&B), 5 A (C) | 0-2 A (A&B), 5 A (C) |
