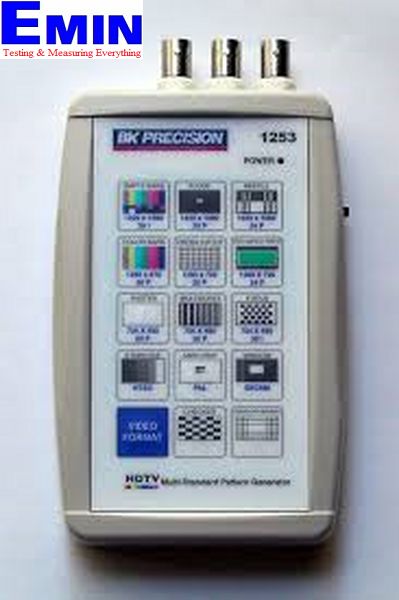

Manufacturer: BK Precision - USA
Model: 1253
- Video Formats:
+ 1. 1920x1080 30i
+ 2. 1920x1080 30p
+ 3. 1920x1080 24p
+ 4. 1280x720 60p
+ 5. 1280x720 30p
+ 6. 1280x720 24p
+ 7. 704x480 60p
+ 8. 704x480 30p
+ 9. 704x480 30i
+ 10. *NTSC
+ 11. *PAL
+ 12. *SECAM
- Patterns
+ 1. SMPTE Bars [75%, 100%] (power up default is 75%)
+ 2. PLUGE
+ 3. Needle
+ 4. Color Bars [75%, 100%]
+ 5. Cross Hatch [16:9, 12:9(4:3)]
+ 6. DVD Aspect Ratio [1.33:1, 1.78:1, 1.85:1, 2.35:1]
+ 7. Raster [75% wht, yel, cyn, grn, mag, red, blu, blk]
+ 8. Multiburst
+ 9. Focus
+ 10. Staircase
+ 11. ANSI Gray
+ 12. Window [2.5 IRE steps from Black to White]
+ 13. Checker
+ 14. Overscan - Bounce
- Operation: 15 buttons, 1 Power Switch
- Y Output: 1V peak-to-peak into 75 ohms, on BNC
- Pb, Pr Outputs: 0.7V peak-to-peak into 75 ohms, on BNC
- S-Video (SVHS): 5 Pin Din
- Video Output Buffer Response 100MHz @ -3dB
- Power Supply 9V Alkaline Battery
- Power Indicator Red LED
- Timing Accuracy 25ppm (0.0025%)
- Video Level error < 1.5%
- Size (LxWxD) 5.6” x 3.1” x 1.1” (142 x 79 x 28mm)
- Weight (Approx.) 6.2 oz (176 g)
