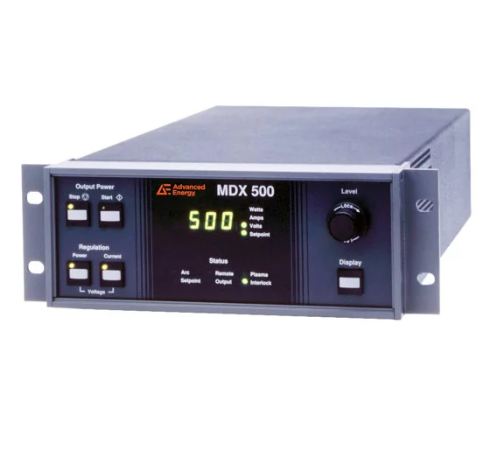

Advanced Energy MDX 500W ລະບົບໄຟຟ້າ DC (1200V, 500W)
ຜູ້ຜະລິດ: Advanced Energy Model: MDX 500W ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
Input Voltage:
90 to 132 Vac (50 to 60 Hz), 1 phase
180 to 265 Vac (50 to 60 Hz), 1 phase
Input Current:
10 A at 120 Vac at 500 W
6.3 A at 230 Vac at 500 W
Power factor: = 0.55
Output Power:
0 to 600 V at 0 to 1 A, 500 W (maximum of 500 W)
0 to 1200 V at 0 to 0.5 A, 2000 W (maximum of 500 W)
Output Voltage/Current: 0 to 500 W
Regulation: Power, current, and voltage
Ripple Switching: 2% p-p (100 kHz)
Line: 1% p-p (100/120 Hz)
Ramp Timer: 0.1, 1.0, or 10 second, selectable at the rear panel
Output Display Accuracy: Within 2% of actual output level or 0.2% of maximum rated output level, whichever is greater
Ambient Operating Temperature
Storage: minimum -25°C (-13°F), maximum 55°C (131° F)
Operating: minimum 0°C (32°F), maximum 40°C (104° F)
Transportation: minimum -25°C (-13°F), maximum 55°C (131° F)
Coolant Temperature: Air (gas) minimum 0°C (32°F), maximum 35°C (95°F)
Humidity: 15 to 85% relative humidity, no condensing or icing
Atmospheric Pressure:
Storage and operation: 800 mbar minimum
Transportation: 600 mbar minimum
