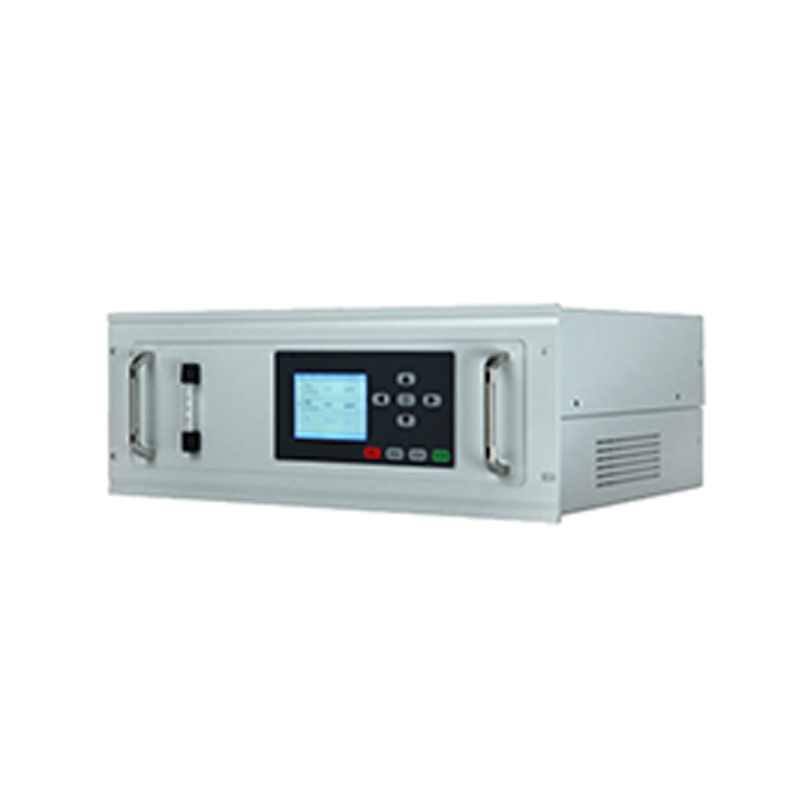

ZuoYeal ZY100 ອຸປະກອນວິເຄາະແກັດລະເພດອຸບັດຕະໄພອຸບັດຕະໄພ Ultraviolet

SO2 Detection range: Min: 0 – 100 ppm, Max: 0 – 5000ppm

NOx Detection range: Min: 0 – 100 ppm, Max: 0 – 5000ppm

O2 Detection range: 0 – 25%, Electrochemical or zirconia

CO Detection range: 0-3000ppm

CO2 Detection range: 0-20%Vol

Linearity error: ≤ ±1.5％ F.S.

Repeatability: ≤ 1％

Zero drift: ≤ ±2％ F.S./ week

Span drift: ≤ ±2％ F.S./week

Ambient temperature: 5℃ ～ 45℃

Response time (T90): ＜10 s

Size: 19″x 3U x 320 mm

Analog interface: 3-way 4-20 mA output, 2-way 4-20 mA output

Data interface: 4-way switch input; 8-way relay output

Communication Interface: 1-way RS-232,1-way RS-485(supports Modbus protocol)

Power: 220 V AC/50 Hz 100 W
