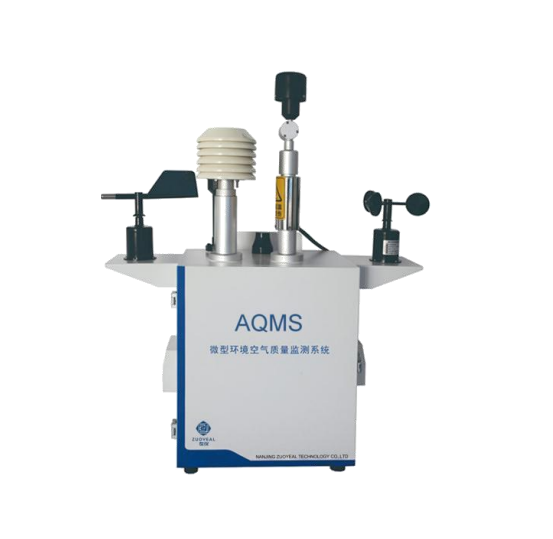

ZuoYeal ZY-AQMS100 ລະບົບການຕິດຕາມຄຸນນະພາບອາກາດສະຖານທີ່ລ້ອມຂ້ອງ Micro Ambient Air Quality Monitoring System

Gases: Measurement range（ppb）/ Resolution (ppb) / LOD(ppb) / 24 h drift zero / ppb

O3: 0-1000 /  1 / ≤10 /  5%F.S

NO: 0-1000 / 1 / ≤10 /  5%F.S

CO: 0-20000 / 1 / ≤150 / 5%F.S

SO2 : 0-1000 / 1 / ≤10 / 5%F.S

H2S(optional): 0-20000 / 1 / ≤150 / 5%F.S

TVOC(optional): 0-40000 / 1 / ≤150 / 5%F.S

CO(optional): 0-100ppm / 0.01ppm /  -  / 5%F.S

NH3(optional): 0-100ppm / 0.01ppm / -  / 5%F.S

Measurement range

PM2.5：（0~10000） μg/m³

PM10：（0~10000） μg/m³

TSP: （0~5000） μg/m³

Indication error: ±15%

Sampling flow: 2.83 L/min，precision ±2.5%, with the cyclone cutter

Grain size: PM2.5, PM10 or TSP

LOD: 2μg/m³

Resolution : 0.1μg/m³

Temperature control : （10~60）℃,temperature control accuracy ±1℃

Data storage : Up to one year

USB interface: Support USB data export

Remote data query: DTU module for remote query of instrument working status and real-time measurement data

Fault Alarm: Real-time display of fault alarm

Air intake heating: Dynamic heating of intake tube and Automatic temperatureand humidity compensation
