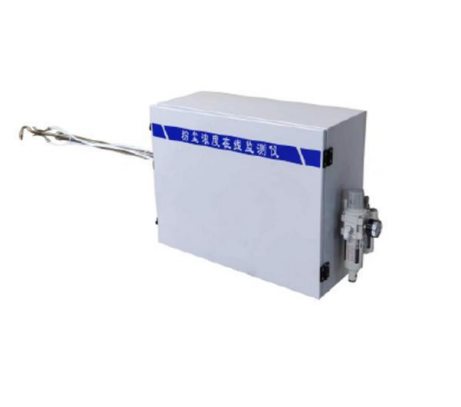

ZuoYeal LD300L ອຸປະກອນວິເຄາະຝຸ່ນສ່ວນປະກອບລະດັບຕ່ຳສຸດອອນໄລນ໌ (0.01-20 mg/m³, 0.01-200 g/m³)

Measuring Range : 0.01-20 mg/m3 ,0.01-200g/m 3 (can be customized)

measurement Error : ≤1.5%F.S./week

Zero and span drift : ≤1.5%F.S./week

Indication error : ±20%

Resolution ratio : Better than 0.005mg/m3

Signal output : (4-20)mA,RS485

Flue pipe diameter : (0.3-20) m

Condition of measured medium:  0-300℃

Backblowing requirements : 100L/min, clean, Pressure 2KG/cm2

Protection level : IP65

Power supply:  220±15%（VAC），600WDust analyzer Size 410mm*300mm*140mm

Dust analyzer Weight : 15KG
