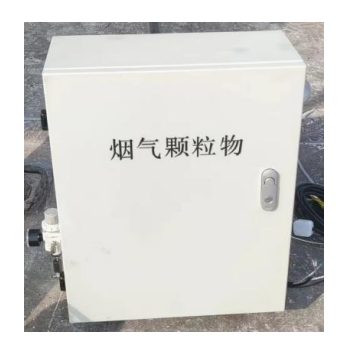

ZuoYeal LD100L ອຸປະກອນວິເຄາະຝຸ່ນສ່ວນປະກອບລະດັບຕ່ຳສຸດອອນໄລນ໌ (0-10 mg/m3 ,0-100g/m3)

Measuring principle : Extractive laser scattering method

Measuring Range : 0-10 mg/m3 ,0-100g/m3 (can be customized)

Detection limit : ≤0.05mg/m3

Indication error : ±10%

Zero and span drift : ≤1.5%F.S./week

Isokinetic sampling : 0-35 m/s

Signal output:  (4-20)mA,RS485,2-way relay output

Calibration : Automatic calibration function

Condition of measured medium : 10℃-300℃

Compressed air demand : 0.3MPa, not less than 60L/min. Protection level IP65

Ambient temperature : -20℃-50℃

Power supply:  220±15%（VAC），600WDust analyzer

Size : 550mm*450mm*200mm

Dust analyzer Weight:  ≤20Kg

Sampling rod length:  1.2  meters (customizable)
