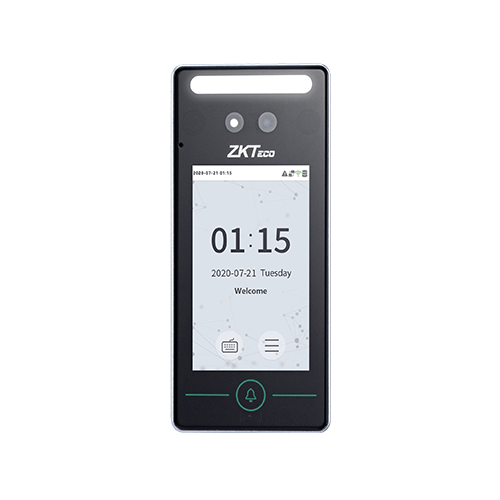

ZKTeco V4L SpeedFace-V4L

Model :SpeedFace-V4L

Display:4" ISP LCD Touch Screen (480*800)

Camera: Binocular Camera@ 2MP

Operation System: Linux

Hardware: 900MHz Dual Core CPU; 512MB RAM / 512 MB ROM; 2MP Binocular Camera;

Adjustable LED Supplement Lighting:

Authentication Method

Face / Palm (Customized) / Card / Password (Virtual Keypad)

Fingerprint Template Capacity

/

Face Template Capacity

1,000 (1:N) (Optional:2,000)

1,000 (1:1) (Optional:2,000)

Palm Template Capacity

1000 (1:N) (Customized)

Card Capacity

1,000 (Optional:2,000)

Transaction Capacity

150,000

Biometric Verification Speed

less than 1 sec (Facial Recognition)

Less than 0.35 Sec (Palm Recognition)

Touchless Biometric Recognition Distance

1cm to 100cm (Facial Recognition)

Up to 50cm (Palm Recognition) (Customized)

False Acceptance Rate (FAR) %

FAR ≤ 0.01% (Visible Light Facial Recognition)

FAR ≤ 0.05% (ZKPalm V12.0)

False Rejection Rate (FRR) %

FRR ≤ 0.02% (Visible Light Facial Recognition)

FRR ≤ 1.8% (ZKPalm V12.0)

Biometric Algorithm

ZKFace V3.9

ArmaturaPalm

Card Type

ID Card@125 kHz (Standard)

13.56MHz IC Card (Optional)

HID card (Optional)

Felica card (Optional)

QR Code

Dynamic or Static QR codes on the ZKBio CVAccess mobile application QR code

Communication

TCP/IP*1, USB Host*1, Wi-Fi (Optional), Wiegand Input*1, Wiegand Output*1, RS485 *1*, 3rd-party Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm Output*1, Aux Input*1

Standard Functions

ID Card, ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods

Power Supply

DC 12V 3A

Operating Temperature

0°C ~ 45°C (32°F ~ 113°F)

Operating Humidity

10% to 90% RH (Non-condensing)

Dimension

157.94*72.94*23 mm (L*W*H)

Gross Weight

0.26 kg

Net Weight

0.85 kg

Supported Software

Software: ZKBio CVAccess

Mobile App: ZSmart

Cloud Service: ZKBio Zlink

Installation

Wall-mount
