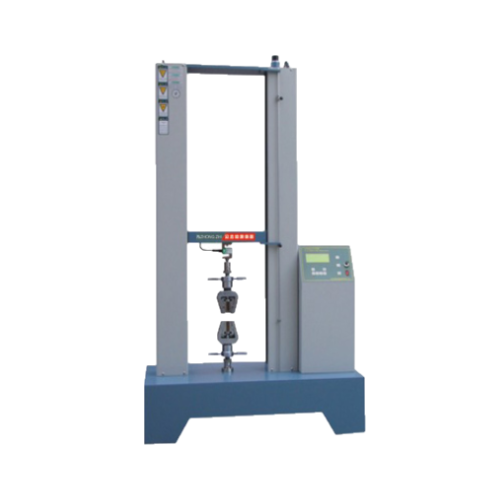

Zhongzhi CZ-8001 Economy Tensile Test Machine

Capacity (Optional): 250N, 500N,1kN, 2.5kN, 5kN, 10kN, 20kN, 30kN, 50kN

Unit (switchable): N,kN,kgf,Lbf,MPa,Lbf/In²,kgf/mm²

Load Resolution: 1/25,000

Accuracy Grade of Machine: 1 Level

Load Magnifying Rate: Section-less

Max Stroke (Exclude the Grips): 1000mm, others (Customized)

Effective Width: 400 mm(Below 30kN), 500 mm(50kN Type)

Test speed: 10 ~ 100mm/min, others(Customized)

Speed ​​accuracy: ± 1%

Displacement Resolution: 0.00125mm

Software: Standard control software

Motor: AC motor

Transmission Rod: High accuracy of ball screw

Main Unit Dimension (WxDxH): 1080x540x1775 mm (Below 30kN)

1280x620x2005 mm (50kN type)

Power: AC220/50HZ 10A or specified by user
