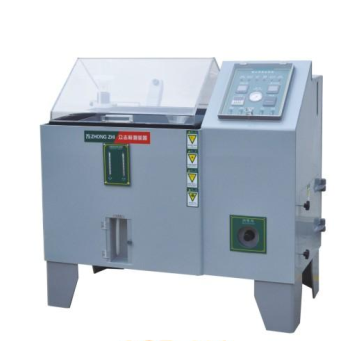

Zhongzhi CZ-60A ຫ້ອງສີດເກືອ (1,0-2,0 ml / 80 cm3)

Lab internal dimension WxHxD(mm): 600x400x450

Lab external dimension WxHxD(mm): 1150x1090x672

Lab temperature: saline testing method(NSS ACSS)35℃ ± 1℃/ corrosion-resistant testing method(CASS) 50℃±1℃

Pressure pot temperature: saline testing method(NSS ACSS)47℃ ± 1℃/ corrosion-resistant testing method(CASS)63℃±1℃

Lab capacity: 108L

Saline tank capacity: 15L

Saline concentration: sodium chloride solution with 5% concentration or 0,26g copper chloride is added to each liter of sodium chloride solution with 5% concentration.

Compressed air pressure: 1.00±0.01 kgf/cm3

Spray volume: 1.0-2.0 ml/80 cm3/h (at least collecting 16 hours and take the average value)

Relative humidity in the lab: above 85%

PH value: 6.5~7.2; 3.0~3.2

Spraym method: continuous spraying

Power: AC 220V; 10A
