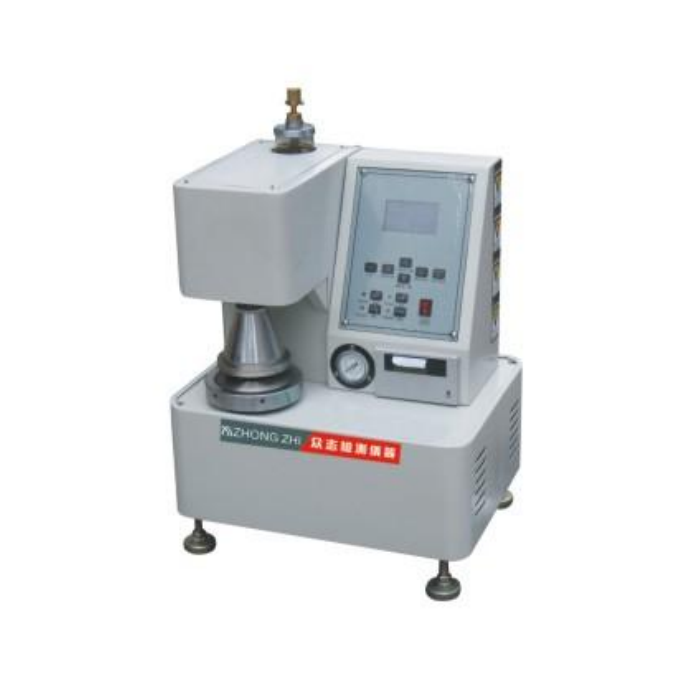

Zhongzhi CZ-101E ເຄື່ອງທົດສອບຄວາມແຮງລະເບີດອັດຕະໂນມັດ

Capacity: 250-5600kPa

Resolution: 1kPa

Unit: kg/cm , Kpa , psi or custom

Induction mode: Pressure converter

Display: LCD

Test Speed: 170cc/min. ±10cc/min

Accuracy: ± 0.5 % FS

Clamp ring diameter: 31.5mm

Indication mode: Digital (with micro - printer)

Clamping indication: Pressure gauge (set clamping force)

Test oil : glycerol: 85 % , distilled water: 15 %

Automatic clamping and release device, sample clamping force: 690kPa

Air-pressure source : min.6kg/cm³ (Customer - supplied)

Motor: Shockproof motor1 / 4HP

Volume: 62x51x57cm ( WxDxH )

Weight : About 67kg

Power: 1, AC220V, 2.6A
