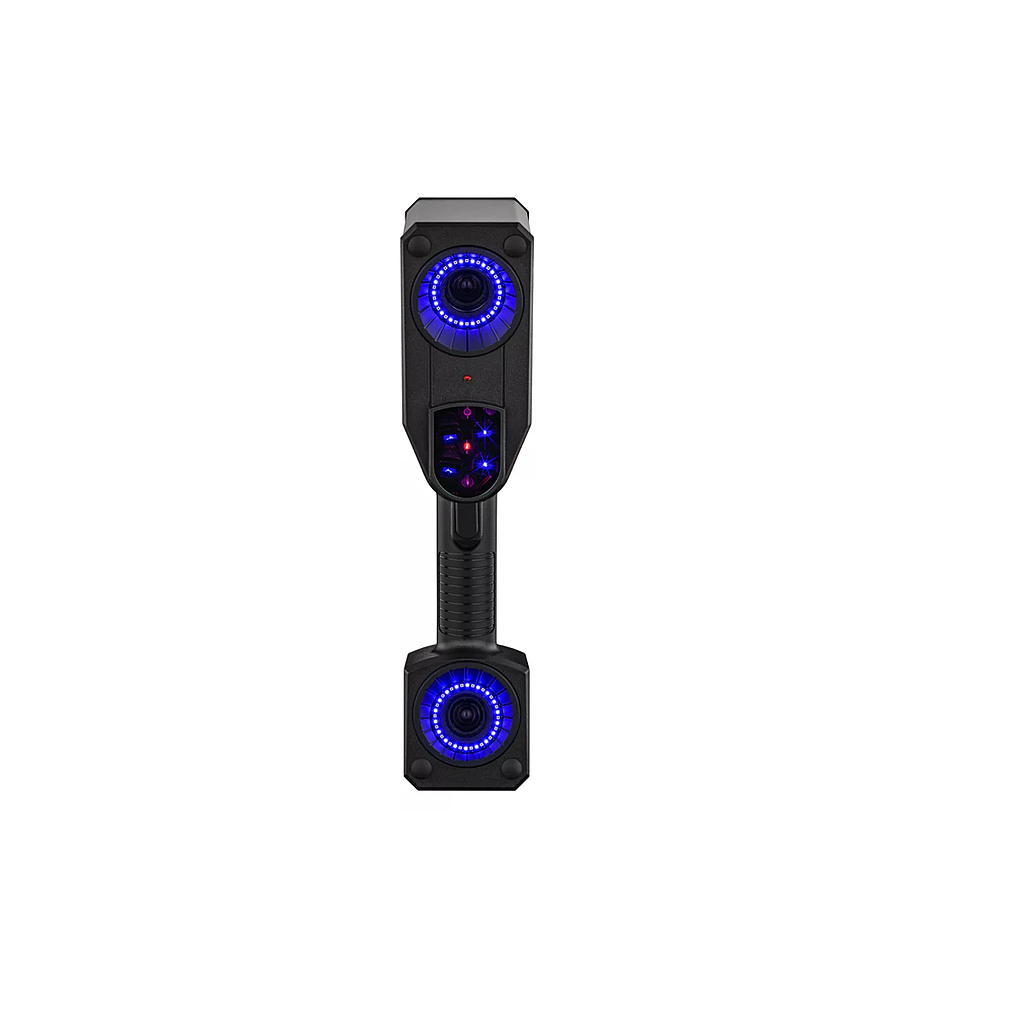

ZEISS T-SCAN Hawk 2 ເຄື່ອງສະແກນ 3D ແບບມືຖື

High-speed scanning: Included (multiple blue laser crosses)

Deep pockets: Included (single blue laser line)

Flexible depth of field: Included (on-object distance radar)

Detailed scan: Included

One-shot sensor calibration: Included (Hyperscale)

Large parts: Included (Satellite mode, no coded markers required)

Extended measurement volume: Supported

Volumetric accuracy: 0.02 mm + 0.015 mm/m (2)

Laser class (IEC 60825-1:2014): Class 2 (eye-safe)

Weight: < 1kg

Cable: 10m (ultra-light)

Software: ZEISS Quality Suite / ZEISS INSPECT

Full remote workflow: Supported

Features

Operate with a push of a button

T-SCAN hawk 2 features four buttons to start and navigate your workflow directly. No need to operate the software separately on your laptop.

Switching between different tasks

T-SCAN hawk 2 features seamless adjustments for resolution and field of view. Whether small parts, fine details, larger objects or deep pockets, confined spaces or hard-to-reach areas, this 3D laser scanner does the job.

Strong on dark and shiny surfaces

T-SCAN hawk 2 supports scanning on a wide range of materials and surfaces, delivering 3D measurement data with the highest precision.

Getting started is easy

Carl Zeiss GOM Metrology GmbH is an accredited laboratory in the fields of calibration of length and coordinate standards for optical metrology.

Each T-SCAN hawk 2 system is delivered with three DAkkS-calibrated, traceable length standards and one DAkkS-calibrated, traceable coordinate standard which are used for system qualification.
