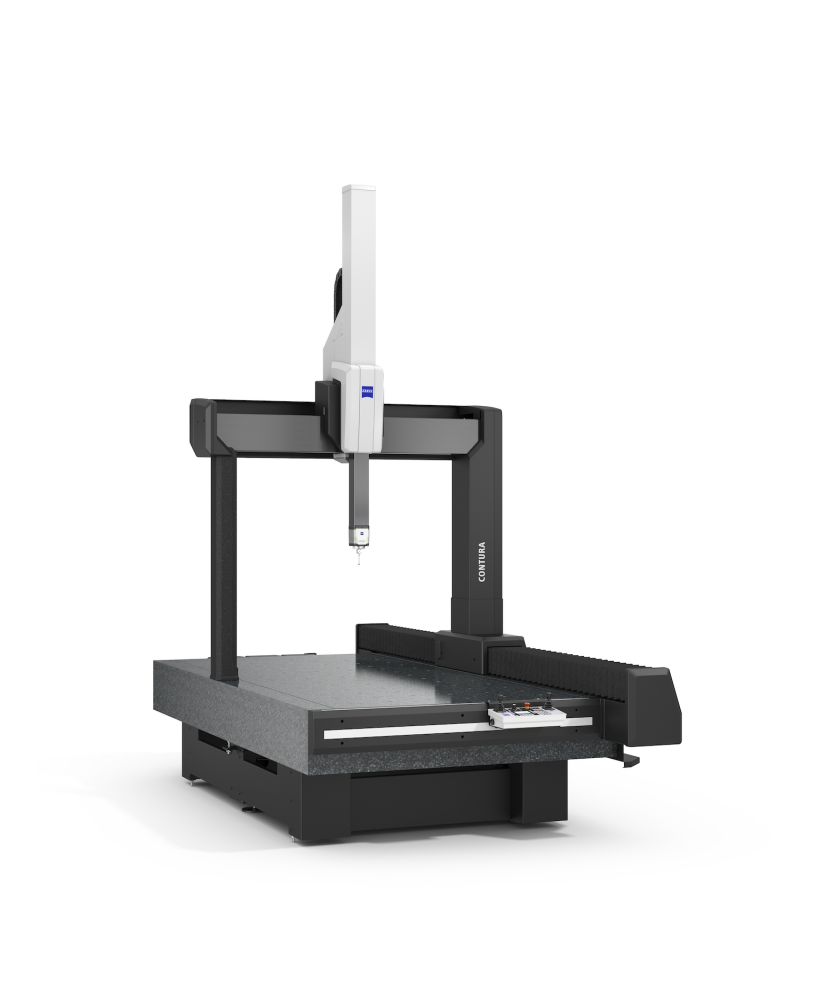

ZEISS CONTURA 7/10/6 ສະຂາຍ CMM (X = 700 mm, Y = 1000 mm, Z = 600 mm)

Measuring volume X = 700 mm, Y = 1000 mm, Z = 600 mm

Specifications here below hold for

S1: active sensors VAST XT gold, VAST XTR gold

S2: passive sensor VAST XXT with RDS

temperature range 18 - 22 °C

maximum temperature gradients 1.0 K/h; 1.5 K/d; 1.0 K/m

Max. Permiss. length measurement Error (MPE) as per ISO 10360-2:2009

MPE_E0 (3D) = (1.4 + L/350) μm for S1

MPE_E0 (3D) = (1.5 + L/350) μm for S2

Max. Permiss. Error (MPE) of scanning probing as per ISO 10360-4:2000

within Maximum Permissible Time (MPT) for scanning test

MPE_THP = 2.0 μm in MPT_tau = 40 s for S1

MPE_THP = 2.7 μm in MPT_tau = 50 s for S2

Single stylus form error as per ISO 10360-5:2010

MPE_PFTU = 1.4 μm for S1

MPE_PFTU = 1.5 μm for S2

Form measuring tolerance as per ISO 12181:2011 (VDI/VDE 2617 part)
