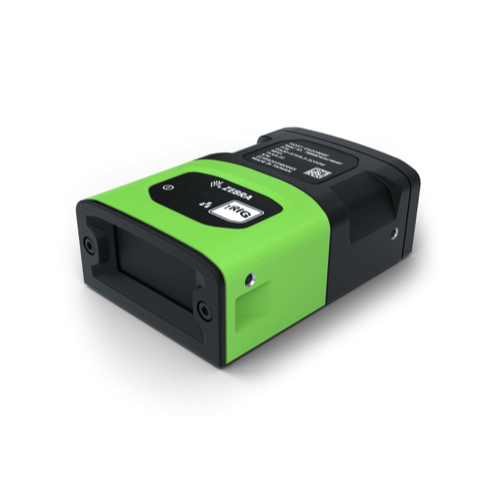

Zebra GS20 ຕູ້ສະແກນບາໂຄດ

Dimensions: 28.3 mm H x 54.6 mm W x 94.3 mm D

Power: External power supply 10 to 30 VDC; max 7W at 24V; PoE Type 2, 7W

Configurable IO: Four optically isolated GPIOs, two dedicated inputs (IN0/IN1), two dedicated outputs (OUT0/OUT1)

Interface Ports: One M12 X-Coded 1000/100/10 Mbps Ethernet, One M12 12-pin power/GPIO/Serial

Host to Leader: PLC (Siemens, Rockwell, Omron, Mitsubishi models), TCP/IP, Serial, GPIO

Leader to Followers: TCP/IP, GPIO

Follower Devices: Max forward current (IFM=70mA @ TA) Compatible with Zebra FS20, FS40, FS70 follower devices connected via TCP/IP and GPIO

Operating Temperature: 32° F to 113° F/0° C to 45° C (depending on duty cycle)

Storage Temperature: -40°F to 158°F/-40°C to 70°C

Humidity: 5% to 90% RH, non-condensing

Vibration Resistance: EN 60068-2-6, 14 mm @ 2 to 10 Hz 1.5 mm @ 13 to 55 Hz; 2 g @ 70 to 500 Hz (2) two hours per axis

Shock Resistance: EN 60068-2-27, 30g; 11 milliseconds; (3) three shocks per axis

Protection Class: IP65 and IP67

Electrostatic Discharge: +/- 15 kV air; +/- 8 kV direct/indirect contact

Recommended Services: Zebra OneCareTM Select; Zebra OneCareTM Essential
