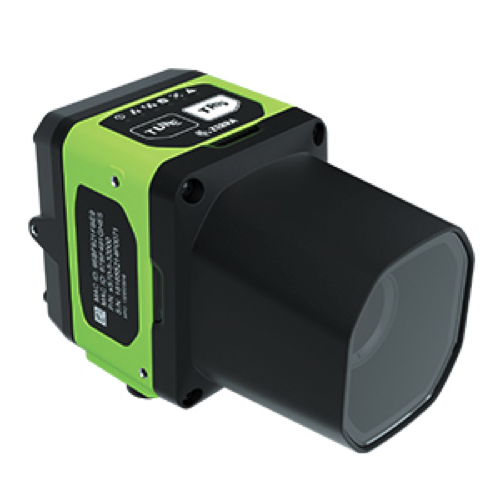

Zebra FS70 ຕູ້ສະແກນອຸດສາຫະກຳຕັ້ງຖືກ (1D, 2D, OCR)

Dimensions: 63.0 mm H x 95.0 mm D x 65.0 mm W

Weight: 650 g

Connectivity: Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232

Decoding Capability: 1D, 2D, OCR

Power:

External Power Supply: 10–30 VDC, 1.5 A max @ 24 VDC (36 W max)

PoE+ Power Supply: Class 4, 25.5 W max

PoE Power Supply: Class 3, 13 W max

USB-C Host: 5 VDC, 3 A max (15 W max)

Image Sensor:

2.3MP: 1/2.3 inch CMOS, global shutter, 1920 x 1200, 3.0 µm square pixels, Monochrome

5.1MP: 1/2.5 inch CMOS, rolling shutter, 2592 x 1952, 2.2 µm square pixels, Monochrome

Acquisition Rate:

2.3MP: Up to 60 frames per second

5.1MP: Up to 30 frames per second

Operating Temperature:

32°F to 113°F / 0°C to 45°C (10–30 VDC external power supply, duty cycle dependent)

32°F to 113°F / 0°C to 40°C (PoE, duty cycle dependent)

Storage Temperature: -40°F to 158°F / -40°C to 70°C

Humidity: 5% to 90% RH, non-condensing

Shock Resistance: EN 60068-2-27, 30 g; 11 ms; 3 shocks per axis

Keyboard Support: USB HID
