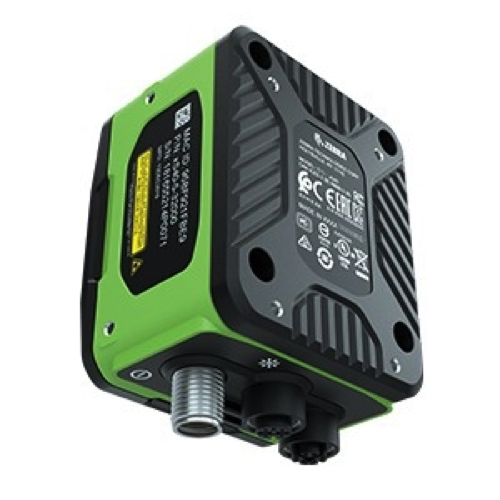

Zebra FS40 ຕູ້ສະແກນອຸດສາຫະກຳຕັ້ງຖືກ
Dimensions (H x D x W): 54.0 x 64.0 x 91.4 mm
Weight: 14.1 oz / 400.0 g
Ports:
(1) M12 X-Coded 1000/100/10 Mbps Ethernet
(1) M12 12-pin Power / GPIO
(1) 5-pin M12 External Light & Control / GPIO
(1) USB 3.0 SuperSpeed Type-C with DisplayPort
Configurable IO:
Four opto-isolated GPIO: GPIO0,1,2,3
Five non-isolated GPIO: GPIO4,5,6,7,8
Color and Material: Industrial blue aluminum housing
Ports:
One M12 X-Coded 1000/100/10 Mbps Ethernet
One M12 12-pin Power / GPIO / RS-232
One 5-pin M12 External Light & Control / GPIO
One USB 3.0 SuperSpeed Type-C with DisplayPort
Alternate Mode: Available with one or two Ethernet ports; PoE supported only by the primary Ethernet port
Protocols: Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232
Status Indicators: 360° LED, five integrated status LEDs, adjustable beeper volume
Image Sensor:
2.3MP: 1/2.3 inch CMOS, global shutter, 1920 x 1200, 3.0 µm square pixels, Monochrome
5.1MP: 1/2.5 inch CMOS, rolling shutter, 2592 x 1952, 2.2 µm square pixels, Monochrome
Acquisition Rate:
2.3MP: Up to 60 frames per second
5.1MP: Up to 30 frames per second
Aimer: Red laser Class II; 8-dot pattern
Illumination: Field-replaceable modules
Imager Field of View:
SR: 10.8 mm Liquid Lens, 30° H x 19° V (Nominal)
WA: 6.8 mm Liquid Lens, 46° H x 29° V (Nominal)
Operating Temperature:
32°F to 113°F / 0°C to 45°C (10–30 VDC external power supply, duty cycle dependent)
32°F to 113°F / 0°C to 40°C (PoE, duty cycle dependent)
Storage Temperature: -40°F to 158°F / -40°C to 70°C
Protection Rating: IP65 and IP67
Humidity: 5% to 90% RH, non-condensing
