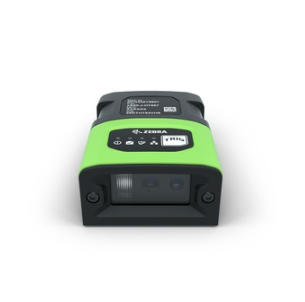

Zebra FS20 ອ່ານບາໂຄດຕົວຢ່າງຖືກຕັ້ງ (1D, 2D, OCR)

Dimensions (H x D x W): 28.3 mm x 94.2 mm x 54.6 mm

Weight: 7.76 oz / 195 g

Power:

External Power Supply: 10–30 VDC, 313 mA max at 24 VDC (7.5 W)

PoE Power Supply: Type 2

Configurable IO:

2 opto-isolated inputs: IN 1, 2

2 opto-isolated outputs: OUT 1, 2

Color and Material: Industrial blue aluminum housing

Interfaces:

One M12 X-Coded 1000/100/10 Mbps Ethernet port

One M12 12-pin Power / GPIO / RS-232 port

Protocols: Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232

Indicators: Decode status LED, Power LED, Online/Run LED, Ethernet status LEDs, Beeper

Image Sensor: 1.0 MP (1280 × 800 pixels) CMOS sensor with global shutter and 3.0 μm pixel size

Acquisition Rate: Up to 60 frames per second

Aimer: Amber LED; circular pattern

Illumination: Two red LEDs (660 nm) or two white LEDs (2700 K)

Field of View: 6.0 mm Liquid Lens: 35° H × 26° V (Nominal)

Operating Temperature:

32°F to 113°F / 0°C to 45°C (10–30 VDC external power supply, duty cycle dependent)

32°F to 113°F / 0°C to 40°C (PoE, duty cycle dependent)

Storage Temperature: -40°F to 158°F / -40°C to 70°C

Protection Rating: IP65 and IP67

Humidity: 5% to 90% RH, non-condensing

1D Symbologies: Codabar, Code 39, Code 93, Code 128, Interleaved 2 of 5, MSI Plessey, UPC/EAN

2D Symbologies: Aztec, Data Matrix, DotCode, MaxiCode, PDF417, Micro PDF417, QR Code, Micro QR

OCR Barcode Reading: Deep Learning-based OCR via optional license add-on. Supports Latin characters (A–Z, a–z, digits, or one of the following: !#$%&()*+,-./:;<=>?@[]^_`{|}~)
