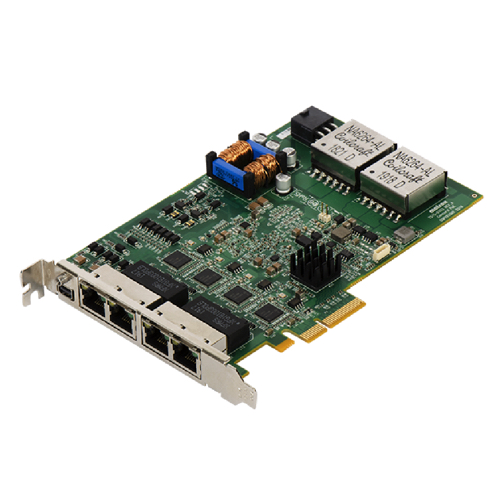

Zebra Concord PoE ອຸປະກອນດຶງຮູບ Vision Frame Grabbers (PCIe 2.1 x4)

Interconnect: PCIe 2.1 x4

Standard: GigE Vision

Configuration: Two (2) or four (4) ports

Speed: 10 / 100 / 1,000 Mbps

Controllers: Intel Ethernet Controller I210-IT

Connectors: RJ-45

Power outpt:

PoE

15.4 W maximum per port

Electrically isolated

Source power from PCIe + 12 V rail or optionally from PC power supply via 6-pin connector

General purpose I/Os type: Six (6) isolated inputs

Two (2) isolated outputs

General purpose I/Os connectors: One (1) mDP connector accessed through a mDP-to-HD15 adaptor

Physic form factor: Half-length, full-height, PCIe add-in card

Product Dimension: 167.65 x 111.15 x 18.7 mm (6.6 x 4.38 x 0.74 in)

Power comsumption:

4.6 W typical (excluding PoE)

37.5 W maximum (from PCIe +12 V rail)

68.5 W maximum (from auxiliary 6-pin connector)

Operating Temperature: 0°C to 55°C (32°F to 131°F)

Relative Humidity: Up to 95% (non-condensing)
