Interconnect: PCIe 2.0 x8
Standard: Analog (RGB, Y/C, and CVBS), single-link DVI (via HDMI), DisplayPort 1.2, HDMI, and SDI (12 G) video acquisition
Connectors:
Two (2) USB Type C connectors for analog (via custom DVI-I adaptor cable)
Two (2) Mini DisplayPort connectors
Four (4) HDMI Type C connectors
Two (2) HD-BNC connectors
Video acquisition paths: Up to eight (8) independent acquisition paths
Maximum acquisition bandwidth: Up to 4 GB/s combined bandwidth
Memory type: DDR3 SDRAM
Quantity: 4 GB
Purpose: Image buffering and processing
On-board video pre-processing: Scaling and de-interlacing
On-board color space conversion: Output formats: 8-bit mono, 8-/10-bit YUV 4:2:2, 8-bit YUV 4:4:4 planar, 8-bit YUV 4:2:0, 8-bit RGB planar, 8-bit BGR32, 10-bit BGRa
Compression standard: On-board H.264 encoding (Pre-licensed for Aurora Imaging Library)
Profile: Baseline to high 4:4:4 predictive profile (Up to 10 bits)

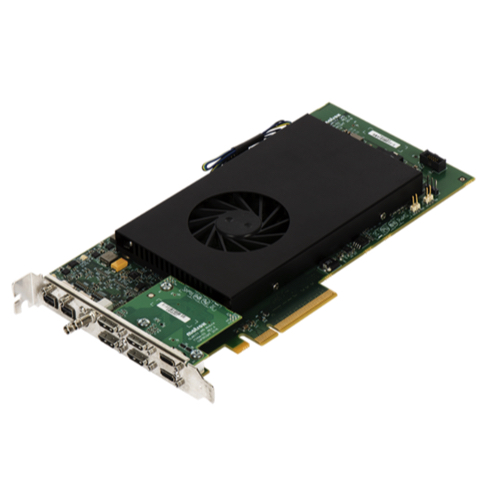

Form factor: ¾-length, full-height, PCIe add-in card
Dimensions (L x W x H): 21.3 x 1.87 x 11.5 cm (8.38 x 0.74 x 4.38 in)
Operating temperature: 0°C to 55°C (32°F to 131°F)
Relative Humidity: Up to 95% (non-condensing)
Compatible: Aurora Imaging Library
