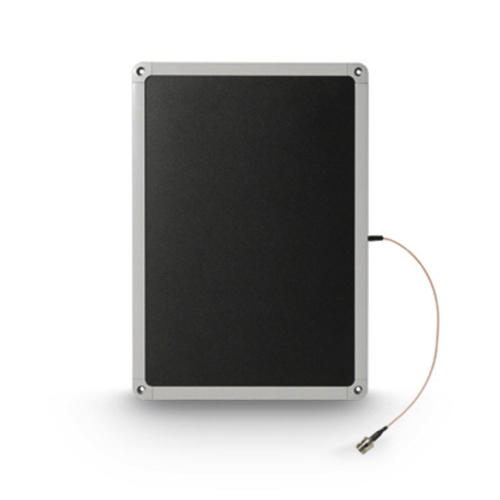

Zebra AN620 ອັນເຕນນາ RFID ຮູບແບບ Ultra-Low Profile (865 – 868 MHz / 902 – 928 MHz; 6 Watts)

Polarization: Left-hand circular

Dimensions: 391 mm x 275 mm X 12 mm / 15.39 in. x 10.82 in x 0.47 in

Connector: N-Type Female

Connector Location: Pigtail - Side

Mounting Options: Flush mount

Weight: 2.2 lbs. / 1.0 kg

Casing/Materials: Aluminum with Kydex Casing

Frequency Range: EU: 865 – 868 MHz / US: 902 – 928 MHz

VSWR (Return Loss): 1.4:1

Gain: 7.0 dBic

Front to Back Ratio: 22 dB

3 dB Beam Width: 75° in horizontal plane, 48° in vertical plane

Maximum Power: 6 Watts

Axial Ratio: < 2 dB

Operating Temperature: -20° to +55°C / -4° to +131°F

Storage Temperature: -30° to +65°C / -22° to +149°F

Standard: IP54

Vibration Resistance: IEC-68-2-6 (10 to 150 Hz, 0.5 g, one hour in each of two axes) (Random Vibration)

Humidity: IEC-68-2-30 (-13° F to 104° F, -25° C to 40° C) 24 hour cycles of 90% relative humidity
