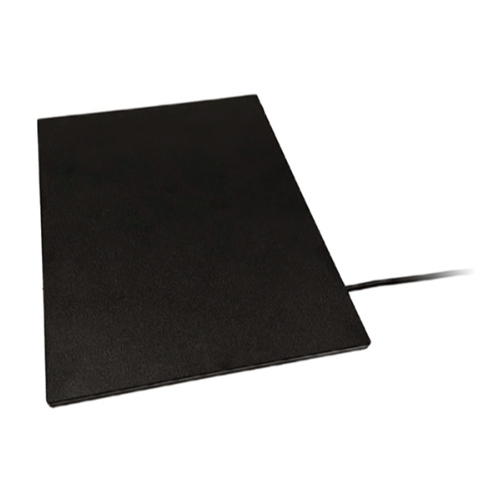

Zebra AN610 ອັນເຕນນາ RFID ຮູບແບບ Ultra-Low Profile (865 – 868 MHz / 902 – 928 MHz; 6 Watts)

Polarization: Left-hand circular

Dimensions: 275 mm x 214 mm x 12 mm/ 10.8 in. x 8.5 in x 0.3 in

Connector: N-Type Female

Connector Location: Pigtail - Side

Mounting Options: Flush mount

Weight: 1.3 lbs./0.6 kg

Casing/Materials: Aluminum with Kydex Casing

Frequency Ranges: EU: 865 – 868 MHz / US: 902 – 928 MHz

VSWR (Return Loss): 1.4:1

Gain: 5.0 dBic

Front to Back Ratio: 18 dB

3 dB Beam Width: 80° in both planes

Maximum Power: 6 Watts

Axial Ratio: < 2 dB

Operating Temperature: -20° to +55°C/-4° to +131°F

Storage Temperature: -30° to +65°C/-22° to +149°F

IP Sealing: IP54

Vibration: IEC-68-2-6 (10 to 150 Hz, 0.5 g, one hour in each of two axes) (Random Vibration)

Humidity: IEC-68-2-30 (-13° F to 104° F, -25° C to 40° C) 24 hour cycles of 90% relative humidity
