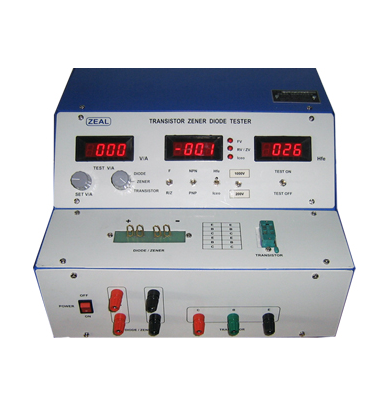

ZEAL ZMTZDT Transistor, Zener Diode Tester (200 VDC)

Input Power: 230 VAC, 50 Hz / 110 VAC, 60 Hz

Hfe Measurement:

• Test Voltage Range: 5.60 Volt VCC

• Base Current: 8µA

• Accuracy of Hfe: 1.5%

Ice Measurement:

• Test Voltage Range: 0 to 200 VDC

• Leakage Current Range: 2000µ

• Accuracy: 1%

Diode Forward Drop Measurement:

• Test Current Range: 0 to 10A DC

• Forward drop Voltage Range: 2 VDC

• Accuracy: 1%

Diode Reverse Voltage Breakdown Measurement:

• Test Voltage Range: 0 to 1000 VDC

• Acceptable Leakage Current Range: 1 mA DC

• Accuracy: 1%

Zener Voltage Measurement:

• Test Voltage Range: 2 to 1000 V DC at 20µA max.

• Accuracy: 1%

Metering: 3½ Digit 7 Segment Display

Weight: 15 kg
