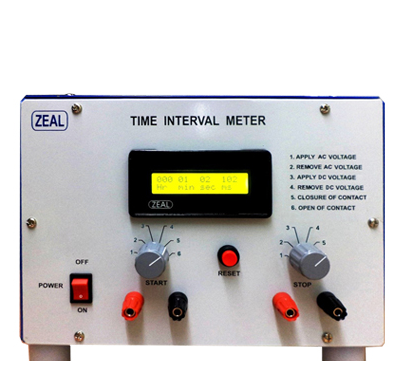

ZEAL ZMTIMmS ເຄື່ອງວັດແທກໄລຍະຫ່າງເວລາ (999 Hr, 59 Min, 59 Sec, 999 Milli Sec)

Input Power: 230 VAC, 50 Hz / 110 VAC, 60 Hz

Test Conditions:

For both Start & Stop Pulse by Decade Switches

• Test 1) Apply DC Voltage (Up to 24 VDC Max)

• Test 2) Remove Voltage

• Test 3) Closure of Contact

• Test 4) Open of Contact

Range: 999 Hr, 59 Min, 59 Sec, 999 Milli Sec

Reset Facility: By Push Button

Display: 16 X 2 Dot Matrix LCD Display

Resolution: 1 Milli second

Accuracy:

• Up to 999 Milli Seconds: 0.05% ± 5 Digit.

• Above 999 Milli Seconds: 0.01%

Protection: Start & Stop Pulse are isolated from each other

Weight: 5 kg

Datasheet
