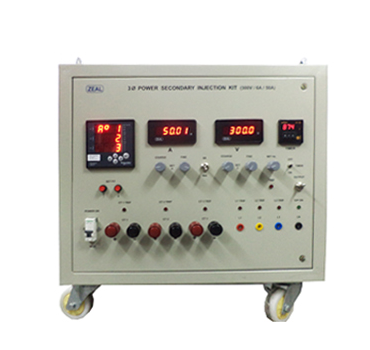

ZEAL ZM3ØSIK ຊຸດສັກຢາຮອງ (0 ~300 V, 0 ~50 A)
Input Power: 230 VAC at 50 Hz / 110 VAC at 60 Hz
Output Voltage Range: 0 to 300 V ( L - N) per phase or 0 to 520 V Phase to Phase
Output Current Range: 0 to 50 A per phase
Output Mode: 3 Phase, 4 Wire & Single Phase.
Output Ports: Vr, Vy, Vb, -N & Ir ( Hi, Lo ), Iy ( Hi, LO ), Ib ( Hi, Lo )
Power Factor Range: 0.5 Lag to Unity to 0.5 Lead.
Compliance: 20VA, at FS on V ranges, 250VA, at FS on A ranges
Frequency: 45 to 60Hz
Timer: With programmable timer counter to keep Output ON for fix duration. Duration Programmable in minute
Metering: Digital Voltmeter, Digital AC Ammeter, Additional Power Analyzer Meter to indicate Phase to Phase Voltage, Phase to Neutral Voltage, Current of Each phase, Frequency, PF, W, VA, VAr, VAHr, Whr. Programmable current display to accommodate CT ratio
Accuracy: ± 0.15% ± 10 Digit for Voltage & Current, ± 0.05% PF,
± 0.3% for W, ± 0.02% timer
Sinusoidal Outputs: THD < 1.5%
Protections: Over Load & Short Circuit
Weight: 80 kg
