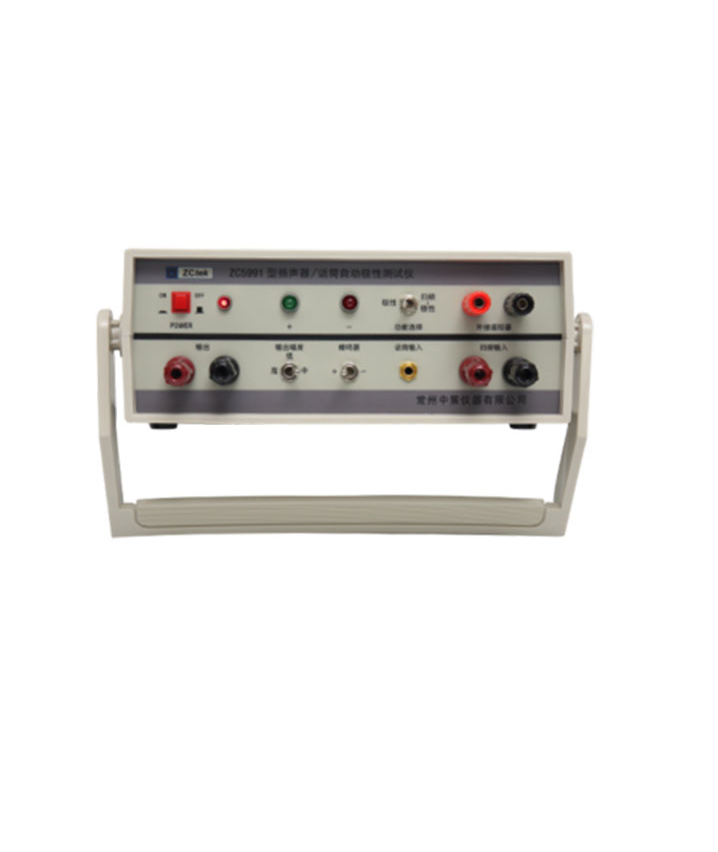

Zctek ZC5991 ເຄື່ອງທົດສອບຂົ້ວ

Test speed: About 0.2 seconds/time

Maximum sensitivity: ≤25cm distance between sensor microphone and tested part

Function selection: Local polarity test, external sound test signal output, remote control

Outcome discrimination: Positive and reverse polarity LED indication

Result alarm: You can choose to alarm or turn off in positive or negative polarity

Measuring signal

Pulse Width: About 0.4ms

Measuring pulse amplitude: ≥10Vp-p （when the radiation is high） high, medium and low three levels of amplitude selection
