Data storage: 4GB
Amplifier frequency range: 10Hz～10kHz
Sampling time intervals:1 ～ 64000µs adjustable
A/D resolution: 24 bit
Number of channels: 2
Frequency range of Transducer: 0.5~9000 Hz（acceleration mode）
Interference between channels: ≤1%
Dimensions: 210mm x149 mm x60 mm
Monitor
Monitor: 5.7 inch、high brightness、TFT Color LCD
Operation Mode: key+Touch screen
Dynamic range: ≥184 dB
Transducer sensitivity: 100 mv/g（acceleration mode）
Continuous operating hours: >5 hrs

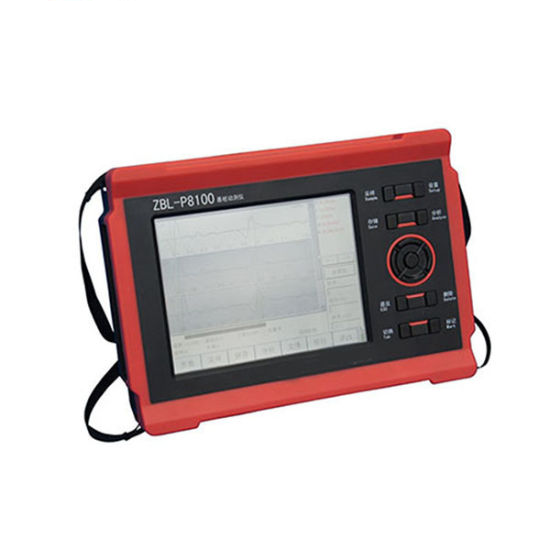

ZBL-P8100, ICP Accelerated transducer ,Hammer,Waterproof case
Datasheet
Manual
By using the reflected wave method, the apparatus is used to assess the integrality of concrete pile and identify the extent and location of the pile defect. It can be used for testing perfusion pile and hammer pile. It can also be used for testing the exposed top surface of constructions such as pillars.
