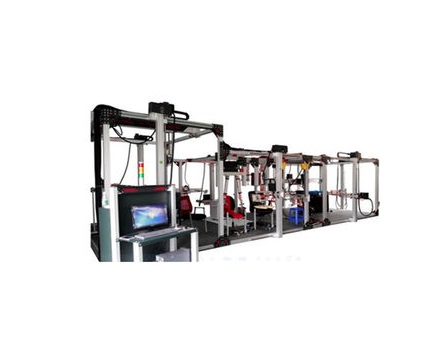

YuYang YY1201 ເຟີນິເຈີຫ້ອງການເຄື່ອງທົດສອບກົນຈັກທີ່ສົມບູນແບບສໍາລັບຕູ້ເກົ້າອີ້ໂຕະ (0-500 kg)
1. Load capacity: 0-500 - kg can be arbitrarily set
2. Overall dimensions (length * width * height) : 9500 * 3200 * 2200 mm ((the top 2600 mm)
3. Load precision: 1/1000
4. Test accuracy: static: ±1％ dynamic power: ±5％
5. Electric cylinder and the cylinder loading: each a single electrical proportional valve control cylinder. Cylinder requirements for imported brands, electrical proportional valve demand for imported brands.
6. Stroke displacement: 0-300 - mm, 0-500 - mm, 0-800 - mm optional settings.
7. Action time: 0.01-30s can be arbitrary set.
8. Test speed: 1 to 30 times/min can be arbitrarily set.
9. Test times: can be set arbitrary in 0-999999 times.
10. Power memory: stop/power and cut point check out stop function. Halfway down or power will automatically save test results.
11. Stop way: closing down the machine after reach test times, and alarm.
12. Sensors: well-known brands sensors.
13. Equipment has a fault self-diagnosis system, convenient examination and troubleshooting.
14. The basic framework use high strength aluminum metal framework of the modular structure, bottom frame adopts three-dimensional structure, structure of the firm.
15. Base: high strength industrial aluminum + GB 45 # steel, thickness of 10 mm, or powerful magnets samples.
16. The program frame can choose simplified Chinese or English, in the application settings page can be arbitrary replacement.
