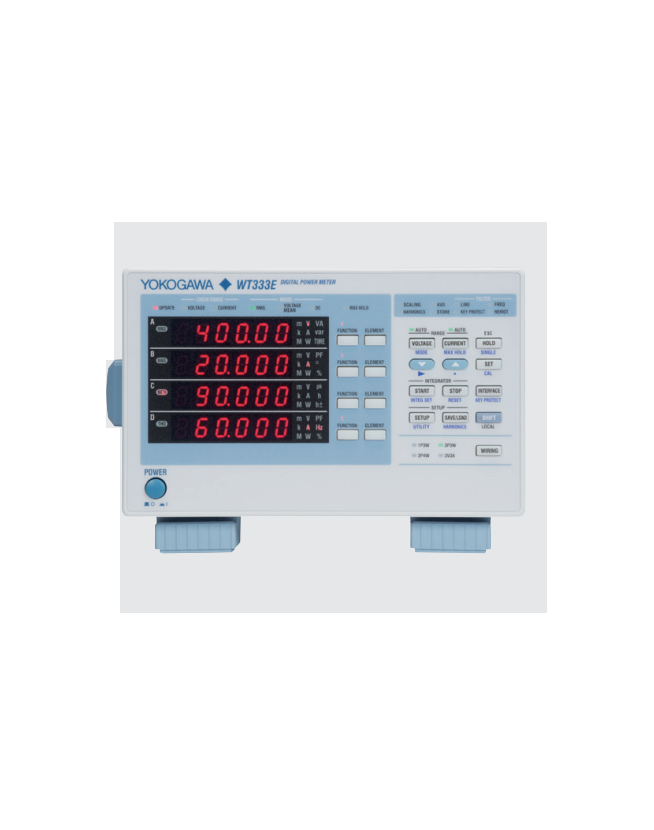

YOKOGAWA WT333E-C1-F/C7/G5 ມົດວັດພະລັງງານດິຈິຕອນ
Number of Inputs: 3 input elements
Voltage Measurement Range:
Power Factor 3: 15 V / 30 V / 60 V / 150 V / 300 V / 600 V
Power Factor 6 or 6A: 7.5 V / 15 V / 30 V / 75 V / 150 V / 300 V
Current Measurement Range:
Power Factor 3: 0.5 A / 1 A / 2 A / 5 A / 10 A / 20 A
Power Factor 6 or 6A: 0.25 A / 0.5 A / 1 A / 2.5 A / 5 A / 10 A
Accuracy: 0.1% of reading + 0.05% of range
Power Factor Influence: (λ) = 0, ±0.1% of S for 45 Hz ≤ f ≤ 66 Hz
Frequency Range: DC, 0.1 Hz – 100 kHz
Input Current: 6 ranges / 0.5 – 20 A
Output Current:
EX1: 2.5 / 5 / 10 [V]
EX2: 50 m / 100 m / 200 m / 500 m / 1 / 2 [V] (Optional)
Frequency Measurement: 2 channels (Voltage and Current)
Number of Display Items: 4 items
Sampling Rate: 100 kS/s
Data Refresh Rate: 100 ms / 250 ms / 500 ms / 1 / 2 / 5 / 10 / 20 seconds, Auto
Harmonic Measurement: Yes
THD Calculation: Yes
Communication Interface: GP- IB
Power Cord: VDE standard
Function: Ethernet interface, Harmonics Measurement
