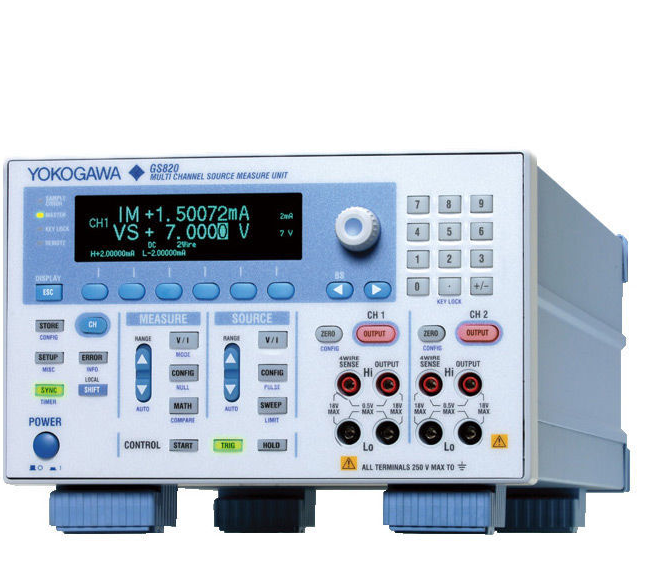

Yokogawa GS820 Multi Channel Source Measure Unit
Display: 256 × 64 dot VFD
Rated supply voltage: 100 to 120 VAC or 200 to 240 VAC
Rated supply frequency: 50/60 Hz
Power consumption: Approx. 250 VA
Warm-up time: At least 60 minutes
Operating temperature and humidity range: 5°C to 40°C and 20% to 80%RH (no condensation)
Storage temperature and humidity range: –15°C to 60°C and 20% to 80%RH (no condensation)
Max. common-mode voltage:
Between the case and each terminal ±250 Vpk
Maximum allowable input voltage:
Between high sense and low sense ±18 Vpk (765601/02)
Between high sense and low sense ±50 Vpk (765611/12)
Between high output and low output ±18 Vpk (765601/02)
Between high output and low output ±50 Vpk (765611/12)
Between high sense and high output ±0.5 Vpk
Between low sense and low output ±0.5 Vpk
Between each terminal of CH1 and each terminal of CH2 ±250 Vpk
Dimensions: Approx. 213 (W) × 132 (H) × 450 (D) mm (excluding projections)
Weight Approx. 8 kg
