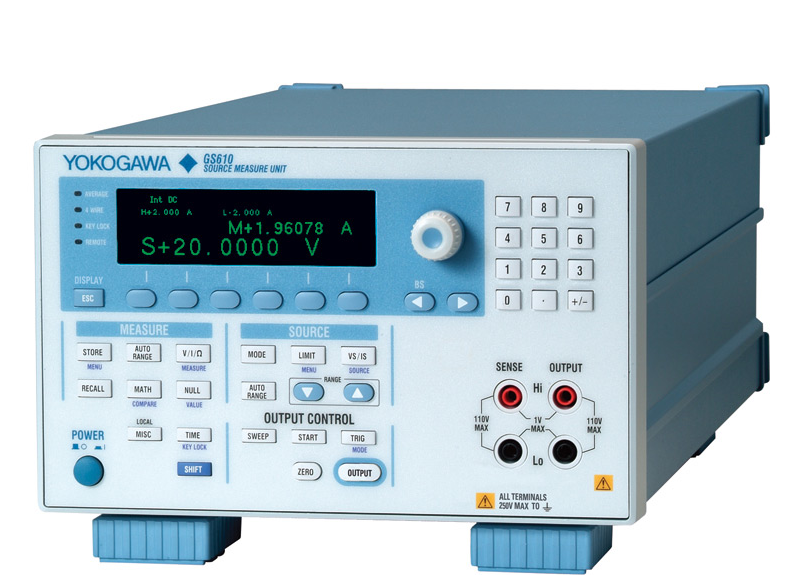

Yokogawa GS610 Source Measure Unit
Display: 256 x 64 dots vacuum fluorescent display
Internal memory:
ROM: 4MB Area for storing setup and output pattern files
RAM: 4MB Area for storing the measured results (cleared when the power is turned OFF)
Warm-up time: At least 60 minutes
Operating conditions: 5 to 40 °C, 20 to 80% RH
Rated supply voltage: 100 to 120 VAC or 220 to 240 VAC (automatic switching)
Rated supply frequency: 50/60 Hz
Maximum power consumption: Approx. 200 VA
Max. common-mode voltage: ±250 Vpeak between the generation(measurement); terminal and case
Max. Output/ input voltage: 110 V between High and Low terminal;
1 V between Output and Sense terminal.
Weight: Approx. 7 kg
Dimensions: Approx. 213 (W) x 132 (H) x 400 (D) mm (excluding projections)
