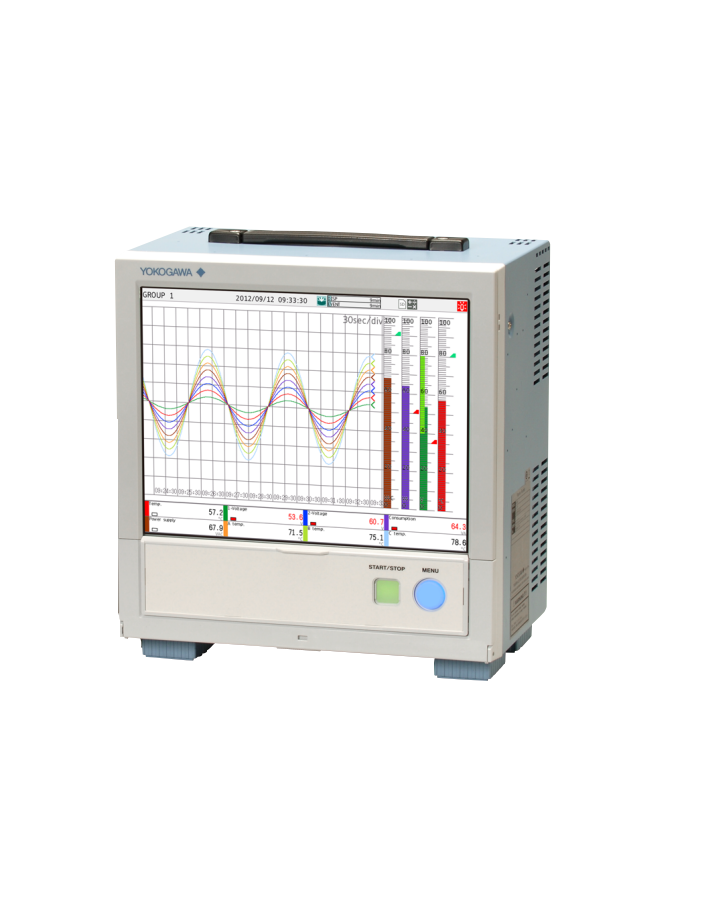

YOKOGAWA GP20-1E1Q/UH/US50 ເຄື່ອງບັນທຶກແບບບໍ່ໃຊ້ເຈ້ຍ
Measuring Functions
The number of installable modules and I/O channels (total for GP, expandable I/O and GM sub unit)
Number of module: Max. 10
Number of input/output module: Max. 100
Scan interval:: 1, 2, 5, 10, 20, 50, 100, 200, 500 ms, 1, 2, 5 s Note) Some intervals will be unavailable depending on the system configuration and modules.
Display Functions
Display groups:
Number of groups: 50
Display color (Trend/Bar graph/Digital display):
Channel: Select from 24 colors
A desired display color can be selected freely using its RGB value.
Background: Select from white or black
Display type:
Trend display (T-Y)
Display method:
Direction: Horizontal, vertical Trend interval(Recording interval): 50 ms/div (1 ms), 100 ms/div (2 ms), 250 ms/div (5 ms), 500 ms/div (10 ms), 1 s/div (20 ms), 2.5 s/div (50 ms), 5 s/div (100 ms), 10 s/ div (200 ms), 15 s/div (500 ms), 30 s/div (1 s), 1 min/div (2 s), 2 min/div (4 s), 5 min/div (10 s), 10 min/div (20 s), 15 min/div (30 s), 20 min/div (40 s), 30 min/div (1 min), 1 h/ div (2 min), 2 h/div (4 min), 4 h/div (8 min), 10 h/div (20 min)
Data Saving Functions
Internal memory:
Temporarily saves various types of data.
Medium: Flash memory
File storage capacity;500 MB
External storage medium:
Medium SD card (SD/SDHC) (up to 32 GB)
Format: FAT32 or FAT16
Data type:
Display data, Event data, Alarm summary data, Manual sampled data, Screen image data, Setup data, and Report data
Display:
12.1-inch TFT color LCD (800 × 600 dots)
A small number of missing or steady-on LCD pixels and minor variations in brightness uniformity is a normal display characteristic and not a malfunction.
Touch screen: 4 wire resistive touch screen
Construction
Material:
Case: Metal plate
Bezel and display cover: Polycarbonate
External dimensions:
When installing modules: 288(W) × 318(H) × 248(D) mm
When uninstalling modules: 288(W) × 318(H) × 197(D) mm
(D: depth from the panel mounting plane)
Weight: Approx. 5.4 kg (excluding modules)
Power Supply:
Rated supply voltage: 100 to 240 VAC
Allowable power supply voltage range: 90 to 132, 180 to 264 VAC
Rated power supply frequency: 50/60 Hz
