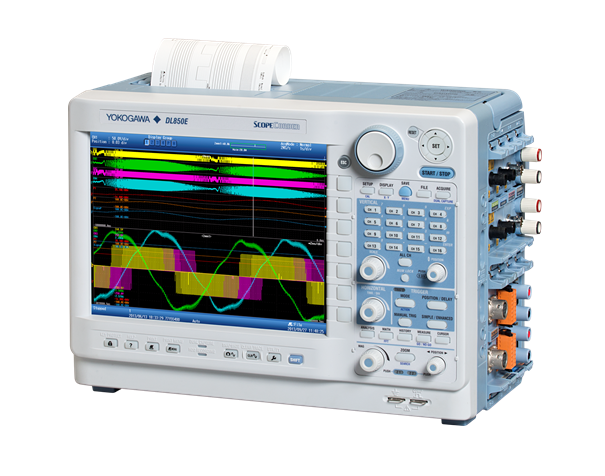

Yokogawa DL850EV ScopeCorders

Max. Record length (standard): 250 Mpts (1 CH); 10 Mpts/CH (16 CH)

Maximum sample rate:Maximum1MS/s (1CH used), 100kS/s (16CH used) depends on channel used

Channels: 120CH/Slot, 336CH/Unit

(Maximum simultaneous display waveform is 64 waveforms x 4 screen selectable)

Display: 10.4-inch TFT color LCD monitor, 1024×768(XGA)

Display resolution of waveform display:selectable either 801×656 (normal waveform display) or 1001×656 (wide waveform display)

Display format:Max 3 simultaneous displays available

In addition to main, 2 more waveforms available among zoom 1, zoom 2, XY1, XY2, FFT1, FFT2 (/G2 option), Vector (/G5 option), Bar graph (/G5 option)

Main waveform (low speed)

Maximum sample rate:100kS/s

Maximum record length:1G point (/M2, 1CH)

Capture waveform(high speed)

Maximum sample rate:100MS/s

Maximum record length:500k point

Performs data acquisition on the same waveform at 2 different sample rates.

SD card slot:Memory cards conforms to SD, SDHC

USB memory:Mass storage device which conforms to USB Mass Storage Class Ver.1.1

External HDD:Hard disc conforms to eSATA, FAT32

Built-in HDD:2.5 inch, 500GB, FAT32

Power supply:100 to 120VAC/220 to 240VAC (automatic switching) — 50/60Hz; 12 V DC (between 10 to 18 V DC) 150 VA max

Power consumption:Max 200 VA

Operating Temperature:5C° to 40C°

Dimensions:Approx. 355 mm (W) x 259 mm (H) x 202mm (D), excluding the grip and projections

Weight:Approx. 800 g
