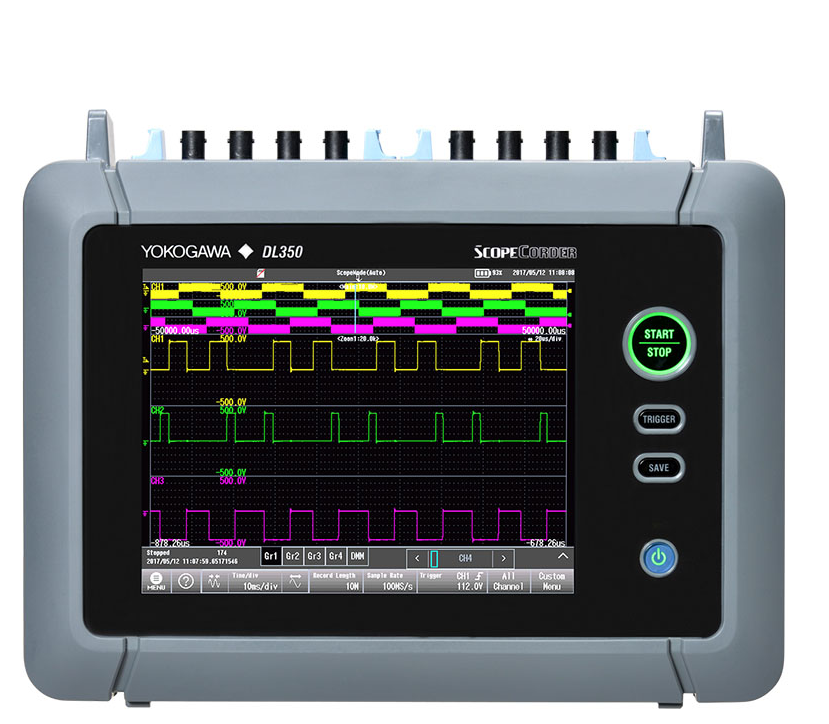

Yokogawa DL350 Portable ScopeCorders
Input section: Plug-in module
Number of slots: 2
Number of input channels: Max. 8 channels(when 4-channel modules are used in both slots) +built-in 16-bit standard logic
Memory capacity: 200 Mpoints in total (100 Mpointsfor each slot)
Basic operation mode: Scope mode, recorder mode
Display: 8.4-inch TFT color LCD (resistive film type touch panel)
Sampling rate :Max. 100 MS/s
Bandwidth :20 MHz
A/D resolution: 16 or 12 bits
Waveform display: T-Y, X-Y, FFT, harmonic analysis
Storage: SD card, USB flash drive, network drive
Power supply: AC adapter, DC power supply, rechargeable battery pack
Operating temperature: 0 to 45°C
Vibration-resistance standard :Conforms to Japanese JIS D 1601 standard 5.2 and 5.3
Dimensions: 305(W) × 217 (H) × 92 (D) mm
Weight: Approx. 3.9 kg (including battery and two 720254 modules)
