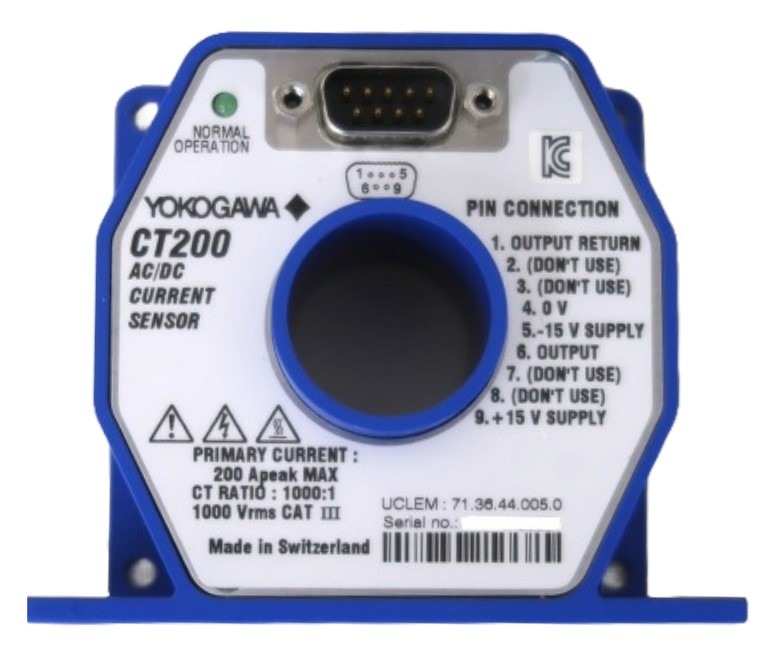

YOKOGAWA CT200 ເຊັນເຊີກະແສໄຟຟ້າ AC/DC (200A)
Rated Current
DC: 0 to 200 A
AC: 200 Apeak
Current transformation ratio: 1000:1
Accuracy
DC: ±(0.05% of rdg + 30 µA)
50/60 Hz: ±(0.05% of rdg + 30 µA), Sine wave
Effect of conductor position: ±0.01% of rdg
Measurement range: DC to 500 kHz (-3 dB)
Temperature coefficient: ±0.01%/°C or less in the ranges from 10 to 18°C and 28 to 50°C
Maximum allowable continuous input: 200 Apeak
Maximum allowable instantaneous input (reference value): 1000 Apeak 0.1 seconds or less
Load resistance (±15 V): 0 to 30 Ω
Operating temperature range: 10 to 50°C
Operating humidity range: 20 to 80% RH (no condensation)
Storage temperature range: 20 to 80% RH (no condensation)
Dimensions
Approx. 93 (W) × 77 (H) × 38 (D) mm (excluding connector, conductor guide, and projections)
Primary current hole diameter: 26 mm diameter
Secondary connector: D-Sub 9 pin
Weight: Approx. 0.3 kg
Power Voltage: ±15 V ±5%
Maximum rated power: 11 VA
Consumption current (at each power voltage): Approx. (80 mA + output current)
Recommended fixing screw and tightening torque
M4 stainless steel screw × 4, 2.8 N·m
M5 stainless steel screw × 2, 3.7 N·m
