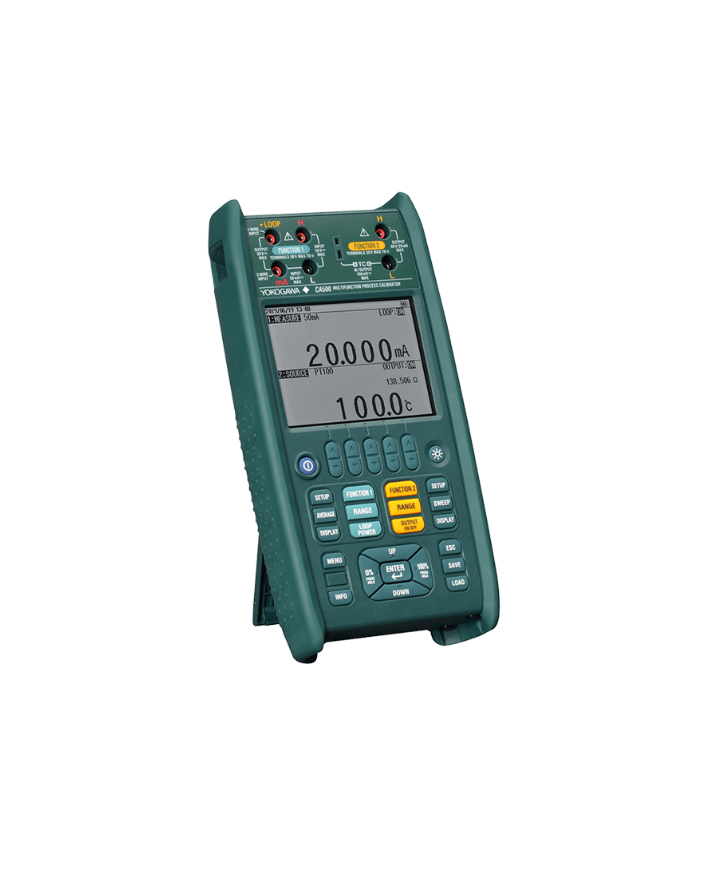

YOKOGAWA CA500 Multi-function Process Calibrator
Power Supply Function
DC Voltage
Measurement Range: 100 mV - 30 V
Resolution: 1 μV – 1 mV
Output Range: ±110.000 mV – ±33.000 V
Highest Accuracy: 0.015% + 10 μV
DC Current
Measurement Range: 20 mA – 20 mA SIMULATE
Resolution: 1 μA
Output Range: ±24.000 mA
Highest Accuracy: 0.015% + 3 μA
Resistance
Measurement Range: 400 Ω – 4000 Ω
Resolution: 10 mΩ – 100 mΩ
Maximum Output Range: 0.0 – 4400.0 Ω
Highest Accuracy: 0.020% + 0.1 Ω
Frequency/Pulse
Measurement Range: 500 Hz – 50 kHz
Resolution: 0.01 Hz – 0.001 kHz
Output Range: 0.001 – 50.000 kHz
Highest Accuracy: 0.005% + 0.001 kHz
CPM: 0.1/min / 1.0 – 1100.0/min / 0.5/min
Measurement Function
DC Voltage
Measurement Range: 100 mV / 5 V / 50 V
Resolution: 1 μV / 0.1 mV / 1 mV
Measurement Range: ±110.000 mV / ±6.0000 V / ±55.000 V
Highest Accuracy: 0.015% + 10 μV
DC Current
Measurement Range: 50 mA
Resolution: 1 μA
Measurement Range: ±60.000 mA
Highest Accuracy: 0.015% + 3 μA
Resistance
Measurement Range: 400 Ω / 4000 Ω
Resolution: 10 mΩ / 100 mΩ
Measurement Range: 0.00 – 440.00 Ω / 0.0 – 4400.0 Ω
Highest Accuracy: 0.020% + 0.1 Ω
Pulse Measurement
Measurement Range: 500 Hz / 5000 Hz / 50 kHz / PULSE COUNT
Resolution: 0.01 Hz / 0.1 Hz / 0.001 kHz / 1
Measurement Range: 1.00 – 550.00 Hz / 1.0 – 5500.0 Hz / 0.001 – 50.000 kHz / 0 – 99999
Highest Accuracy: 0.005% + 0.001 kHz
Memory: 100 measurement results
Dimensions: 130 (W) × 260 (H) × 53 (D) mm
Weight: 900 g
