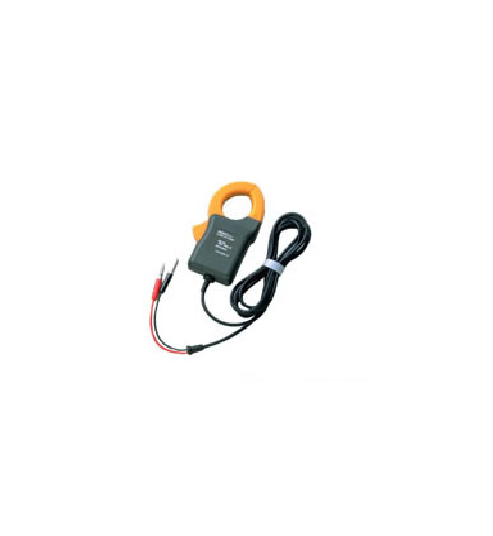

Yokogawa 96001 Current Clamp-On Probe
Measuring Range:0 to 400 A ACrms (600 A peak)
Output Voltage:0 to 4 V ACrms (10mV/A)
Accuracy(at 23 deg.C ±5 deg.C,sine wave input):Amplitude:±1.5% of rdg ±0.4mV (20Hz to 40Hz), ±1.0% of rdg ±0.2mV (40Hz to 1kHz), ±(0.8 + 0.2 x f kHz)% of rdg ±(0.2 + 0.04 x f kHz)mV (1 to 20kHz); Phase:Within ±3.0 deg.C (40Hz to 1kHz)
Temperature Coefficient0.05% fs/deg.C in a range of 0 deg.C to 18 deg.C and 28 deg.C to 50 deg.C
Output Impedance:Approximately 30Ω
Load Impedance:100kΩ min.//100 pF max.
Safety:Conforms to IEC 1010.
External Dimensions:Approximately 70(W) x 130(H) x 30(D)mm
Weight:Approximately 220g
Output cord length:Approximately 2.5 meters(with banana plug)
Accessories:One portable case and one instruction manual
