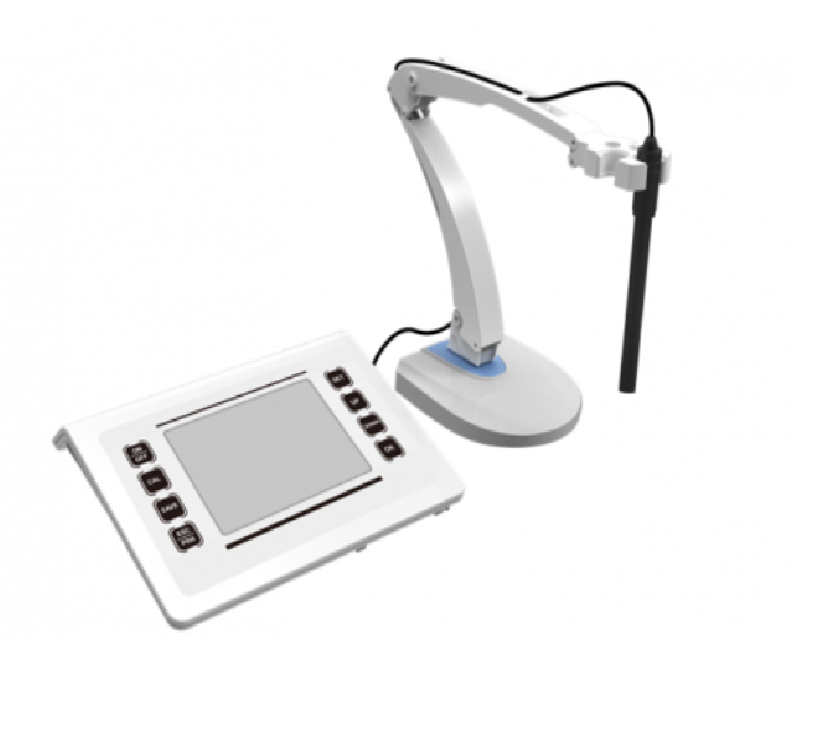

Yoke P716 Conductivity/DO Meter (Automatic calibration)

-Conductivity:

+ Measuring range:

Conductivity:

(0.00~20.00)μS/cm

(20.0~200.0)μS/cm

(200~2000)μS/cm

(2.00~20.00)mS/cm

(20.0~200.0)mS/cm

(200~2000)mS/cm(K=10)

TDS:(0 ~ 100)g/L

Salinity:(0 ~ 100)ppt

Resistivity:(0 ~ 100)MΩ·cm

+ Resolution: 0.01/0.1/1μS/cm; 0.01/0.1mS/cm

+ Accuracy Electrode: ±0.5% FS, Meter: ±0.8% FS

+ Temp. compensation range: (0 ~ 50)℃ , auto

+ Electrode constant: 0.1/0.5/1/5/10/50/100 cm-1

+ Reference Temp.: 25℃、 20℃、 18℃

-DO:

Measuring range: (0 ~ 20.00） mg/L(ppm) (0 ~ 200.0)%

Resolution: 0.1/0.01 mg/L(ppm) 1/0.1 %

Accuracy Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L

Response time: ≤30s (25℃ , 90%response)

Residual current: ≤0.1 mg/L

Temp compensation: (0 ~ 45)℃ (automatic)

Salinity compensation: (0 ~ 45) ppt (automatic)

Pressure compensation: (80 ~ 105) kPa (automatic)

Automatic calibration: Air saturated by water; water saturated by air

Electrode type: Polarographic

-Temperature:

Range: (-10 ~ 110)℃

Resolution: 0.1℃

Accuracy: 5 ~ 60℃ :±0.5℃. Others: ±1.0℃

-Other Parameters:

Display: 6.5-inch LED screen

Data storage: 1000 sets

Power: 12V (110-220, 50-60Hz adapter)

Communication interface: USB, RS232, Bluetooth

Dimensions & Weight: 240×170×70mm/600g

-Working Conditions:

Temperature: 5 ~ 35 ℃

Humidity: ≤80%

IP grade: :IP54

-Meter Kits:

1) Conductivity & DO Meter

2) Electrode holder

3) Conductivity electrode (K=1)

4) DO electrode

5) Temperature probe

6) DO filling solution

7) Membrane cap

8) Cathode polishing paper

9) Power adapter
