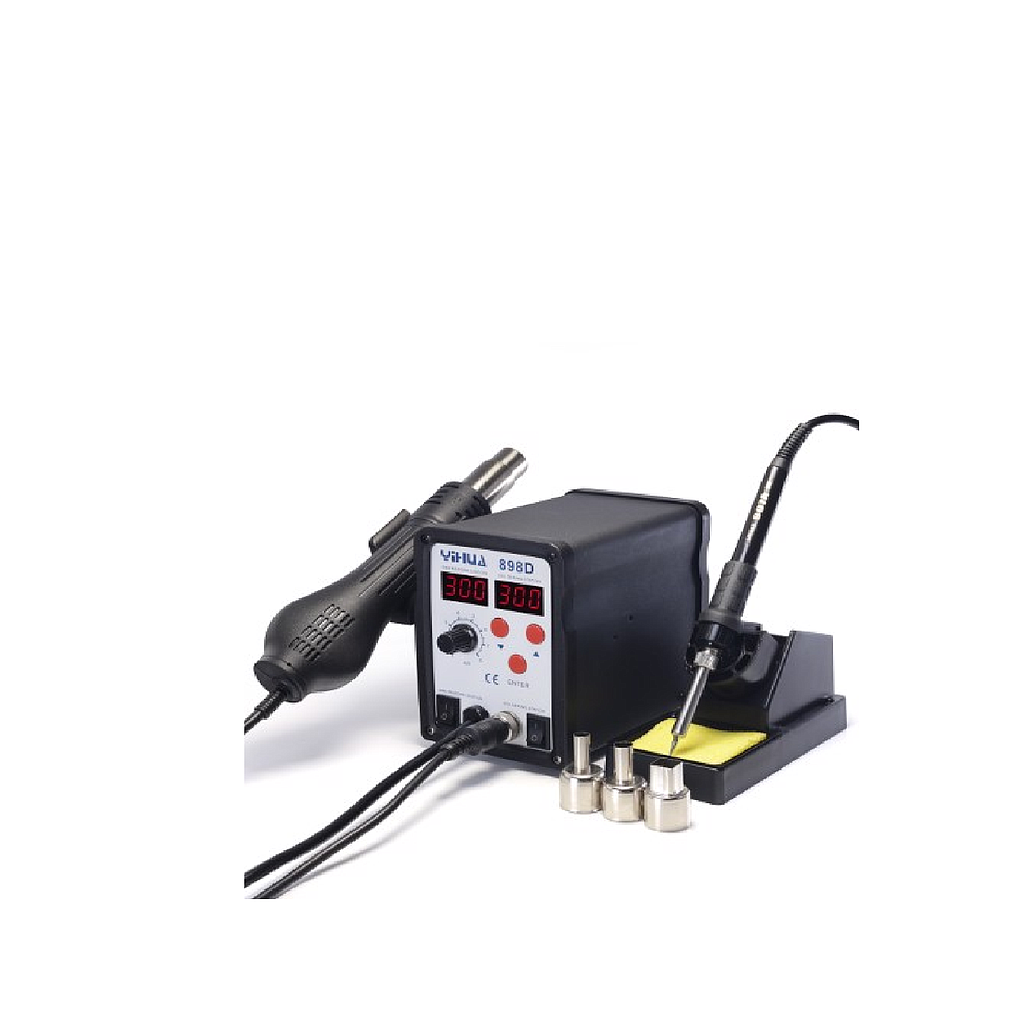

YIHUA 898D ສະຖານີ rework (730W)

General Specifications

Input Voltage: 220V AC ±10%, 50Hz

Total Power Consumption: 730W

Hot Air Gun Specifications

Voltage: 220V AC ±10%, 50Hz

Hot Air Power: 650W

Temperature Range: 100 ~ 480ºC

Air System: Fan Motor

Air Flow Rate: Up to 120L/min

Heating Element Structure: Ceramic frame with dual coil winding (Yihua 898 hot air core)

Temperature Adjustment Precision: 1ºC

Temperature Control Cycle: 200ms

Soldering Iron Specifications

Voltage: 26V AC ±10%, 50Hz

Soldering Power: 50W

Temperature Range: 200 ~ 480ºC

Heating Element Structure: Metal (Yihua 133A)

Temperature Adjustment Precision: 10ºC

Temperature Control Cycle: 200ms

Ground Resistance: < 2Ω

Ground Potential: < 2mV

Device Specifications

Dimensions: 150 x 100 x 135 mm

Weight: 2.6 kg
