Working voltage
+ Hot air gun: AC 220V±10% 50Hz
+ Solering iron: AC 26V±10% 50Hz
Output power
+ Hot air gun: 650W
+ Solering iron: 50W
Temperature range
+ Hot air gun: 100℃～450℃
+ Solering iron: 200℃～480℃
Temperature stability:
+ Hot air gun: ±15℃ （static）
+ Solering iron: ±10℃ （static）
Display: Led
Airflow: 120L/min(max)
Machine powe: 700W±10％（MAX）
Machine size: 25.5*18.8*12.5cm
Working environment: 0～40℃ relative humidity ＜80％
Weight: 4.5Kg
Product Features

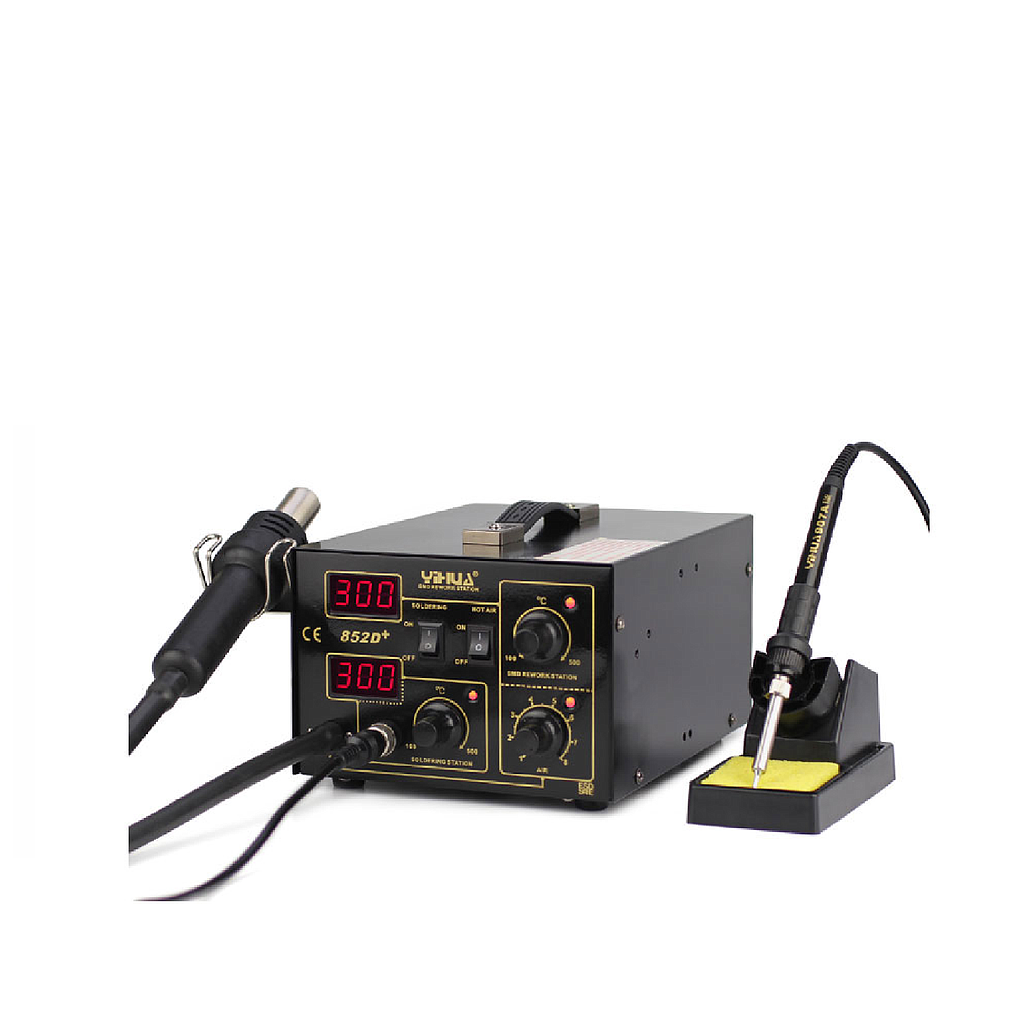

1.This two-in-one combo includes both a top-notch brushless air gun and a high-quality soldering station.
2.Two-in-one hot air gun and soldering iron, double LED digital display, stylishly compact, feature-rich.
3.Pioneering with handle safety protection, an industry-first, a docked handle in the handle holder is required each time prior to machine operation. If not (placed) in the handle holder, the operator will not be able to detect compliance with safety instructions and the machine will not work. The purpose of such a function is to prevent handle misplacement or accidental placement in unsafe or flammable (work) locations that could lead to undesirable consequences.
4.An anti-static design effectively prevents damage to delicate components;
5.The back of the machine features a main power supply switch. For added energy savings and greater safety, turn off the main power supply switch when the machine will not be used for a long period of time.
6.Common features of the handle of the brushless fan type hot air gun:
(a) The brushless-motor fan for the hot air gun has a standard service life of 20000 hours. The airflow is soft, uniform and heavy.
(b) The hot air gun’s heating element employs brand new columned heating core developed with a ceramic process, having strong stability, resistance to impact and dropping, and extraordinarily vibration-mitigation ability.
(c) The outlet steel cylinder of the handle and the hot air gun nozzle are made of superior stainless steel with better conductivity and strong oxidation resistance;
7.(a) Brushless fan type hot air gun:
Nozzles with diameter less than 5mm are not suitable for use, those nozzles larger than 5 mm can be fitted.
The diaphragm-type station provides air at higher pressures, while the fan-type station provides air at more moderate pressures. If a smaller nozzle is paired with the fan-type station, the hot air will not blow out from the handle and may lead to handle and fan burns.
(b) Characteristics of the fan airflow: large in volume and small in pressure (maximum air volume is 120 L/min)
(c) Applicable range:
The larger the gun nozzle for the machine, the larger the air volume and hot wind area. It is suitable for unsoldering integrated chips which have large surface areas and multiple pins.
8.This product is CE approved.
Product parameter
|
Machine parameter |
|||
|
Rated voltage |
AC 220V±10% 50Hz |
||
|
Machine power |
700W±10％（MAX） |
||
|
working environment |
0～40℃ relative humidity ＜80％ |
||
|
Storage temperature |
－20～80℃ relative humidity ＜80％ |
||
|
Machine size |
25.5*18.8*12.5cm |
||
|
weight |
4.5KG |
||
|
Part of performance parameters |
Hot air gun |
Solering iron |
|
|
Working voltage |
AC 220V±10% 50Hz |
AC 26V±10% 50Hz |
|
|
Output power |
650W |
50W |
|
|
temperature range |
100℃～450℃ |
200℃～480℃ |
|
|
Mode of airflow |
brushless fan |
--- |
|
|
airflow |
120L/min(max) |
--- |
|
|
Temperature stability |
±15℃ （static） |
±10℃ （static） |
|
|
Display |
LED |
LED |
|
|
heater |
Heating core ceramics heater |
common heater |
|
|
Tips to ground impedance |
--- |
＜2Ω |
|
|
Tips voltage to ground |
--- |
＜2mV |
|
