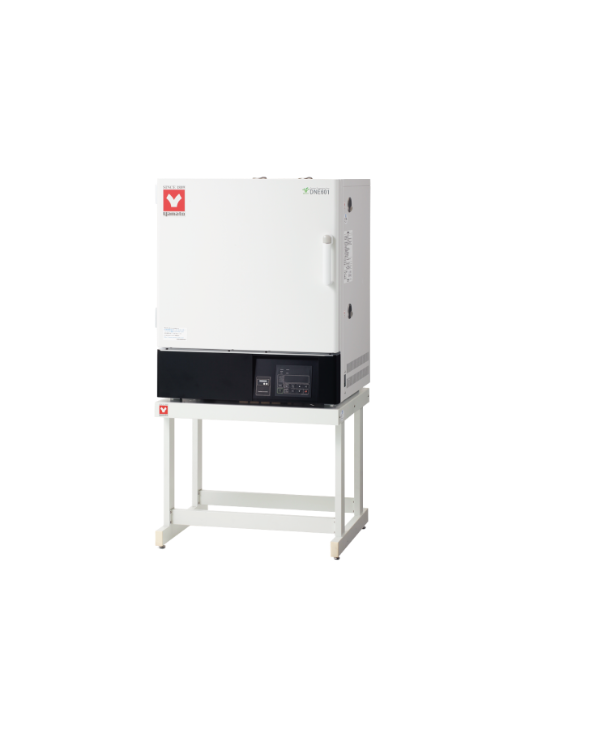

Yamato DNE601 ເຕົາອົບ Convection ບັງຄັບ
Operating temp. range: Room temp. +20 to 210°C
Temp. adjustment accuracy: ±0.5°C (at 210°C)
Temp. distribution accuracy: ±2.0°C (at 210°C)
Max. temp. reaching time: Approx. 70 min.
Interior/Exterior material: Stainless steel /Electro-galvanized steel sheet with epoxy and melamine resin baking finish
Operation function: Fixed temperature operation, Program operation, Auto start, Auto-stop, Quick automatic stop
Program mode: Program operation; Maximum 32 steps, Repeat function
Additional functions: Timer Function (Actual Timer within 24hrs.), Total operation hours timer (to 65535hrs.), Calendar time ( 24 hours),
Shelf plate with standard load: Approx. 15kg/piece
Heat insulating material: Glass wool
Heater: Stainless pipe heater
Heater: 1.2kW
Fan Type: Scirocco fan
Motor: Condenser type
Cable hole/Air in-take hole: 33mm I.D. (the right side) 1pc. each
Temp. controller: PlD control by microprocessor
Temp. setting method: Digital setting by UP/DOWN key
Temp display method: Digital Display by Green LED
Timer/Min.division: 1 min. to 99 Hrs. 59 min. /1 min.
Additional functions: Calibration offset, Power discharge, CO2 discharge, Power failure return mode, User configuration information
Heater circuit control: Triac zero-cross control
Safety countermeasures: Self diagnosis functions (Temp. sensor abnormal, Heater disconnection, SSR- short, Main relay abnormal, Automatic overheating prevention),
Safety countermeasures: Key lock function, Independent overheat prevention, Electric leakage breaker with over current protection
Shelf support step number: 13 steps
Shelf support pitch: 30 mm
Accessories Shelf plate: Stainless steel, 2 pcs.
Accessories Shelf support: 4 pcs. (1 pair - 2 pcs. is fixed)
Method: Forced air circulation
Internal dimensions（W×D×H mm): 600×500×500mm
External dimensions（W×D×H mm): 730×695×910mm
Remarks(dimensions): 150L
Power Source: AC115V 12A Single-phase
Weight: 77kg
