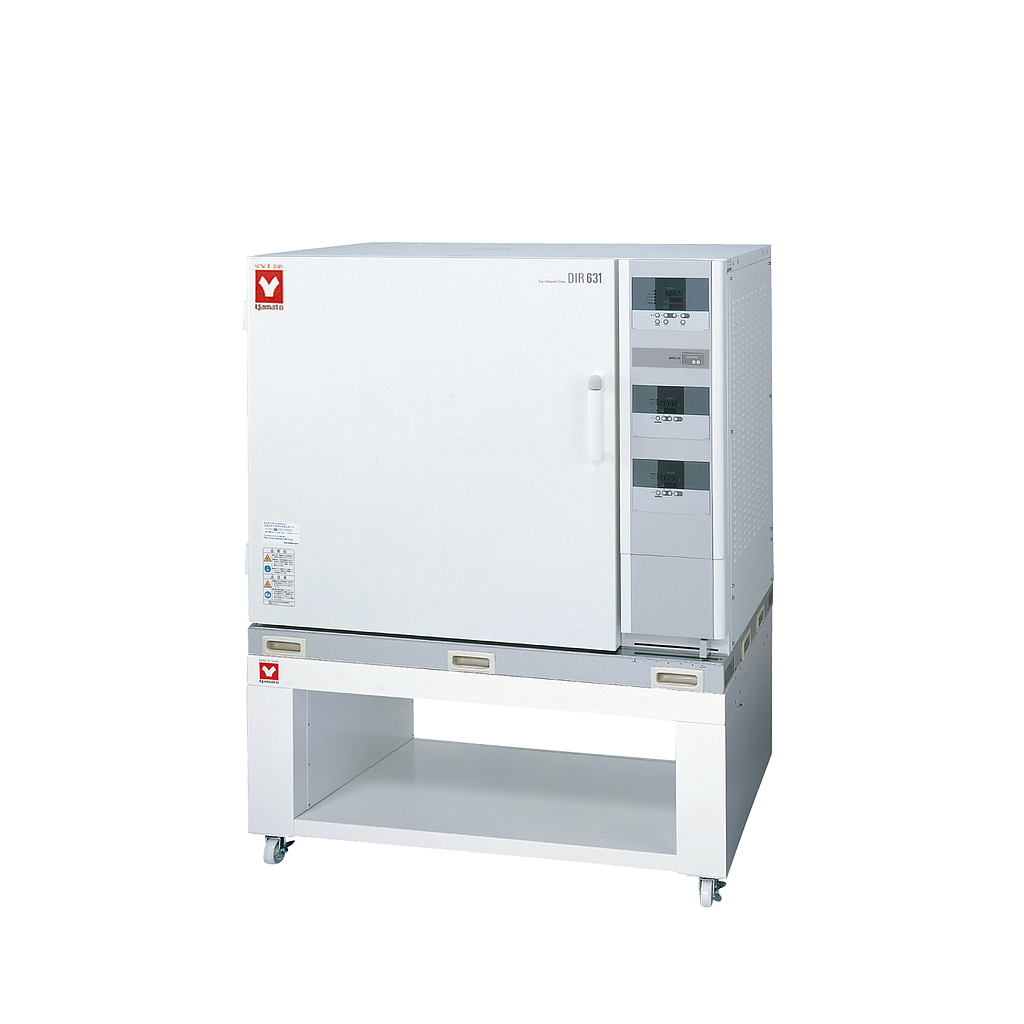

Yamato DIR631 ເຕົາອົບ IR ຄວາມຮ້ອນໄກ-ອິນຟາເຣດ (216L, 3.75kW)
Method: IR radiation+Forced convection circulation and ventilation
Operating temperature range: Room temp. +10 to 360°C
Max. temp. reaching time: 100 min (to 360°C, when IR Heater is OFF)
Heater: Stainless pipe heater with fin, 3.75kW
IR heate:r 0.2kW×16pcs×2 sides of the top and the bottom, 6.4kW in total
Fan type / Motor: Axial fan / Condenser motor 20W
Sensor: Double K thermocouples×1 (for unit body temp. controller and overheat protector)
Sensor: K thermocouple×2 (for IR heater which is built in the center)
Cable port: I.D. 30mm (at back)
Effective dimensions (W×D×H): 600×600×200mm
External dimensions (W×D×H): 1,200×780×1,790mm (with stand)
Shelf plate: Stainless steel wire shelf
Shelf plate: 1 pc
Shelf bracket: 2 pcs.
Internal dimensions（W×D×H mm）: 600×600×600mm
External dimensions（W×D×H mm）: 1200×780×1000mm
Remarks(dimensions): 216L (Space between IR heaters are 200mm)
Power Source: AC380V 18A Three-phase
Weight: 230kg
Remarks(weight): Approx. 250 kg (with stand)
