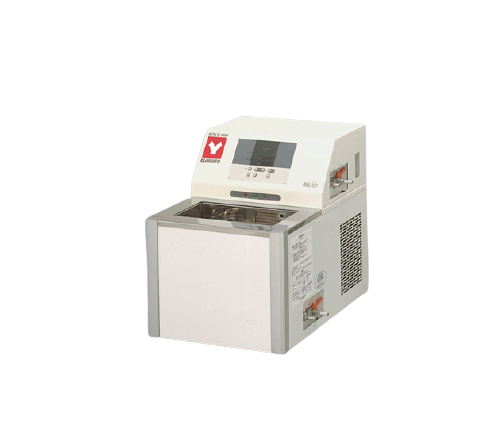

Yamato BBL101 ອາບນ້ໍາ (8L)
System: Pump circulation cooling/external closed circulation
Operating temperature range: -10~+80°C (at room temperature 20°C)
Temperature control accuracy: ±0.1°C
Temp. distribution accuracy: ±0.3°C
Cooling capacity: Approx. 370W (320Kcal/h), at fluid temp.15°C
Temperature control: PID control
Operation function: Fixed temp., auto stop , auto start operations
Temperature sensor: Temp. controller: Pt thermal resistance, Overheat protection: K thermocouple
Temp. setting, display: Digital setting and display
Refrigerator, refrigerant: Air cooling 160W, R134A
Strring method: Magnetic drive pump
Unit circulation ability (50/60 Hz): Max. flow 3.7/4.7L/min, pump capacity 11/12L/min, Max. lift 1/1.5m, pump capacity 1.5/2.1m
Heater: 700W
External circulation nozzle: O.D.10.5mm of water outlet and return port
Operating environmental temp. Range: 5~30°C
Safety device: Overcurrent ELB, Self-diagnosis, Refrigerator overload protector, Refrigerator delay timer of protection, Refrigerator pressure detection, Float switch preventing pump idling, Auto overheat protection, Overheat protector, Key lock, etc..
Other function: Water valve, Condenser filter screen, Deviation correction, External communication (RS485), Refrigerator pressure indicator, Power outagecompensation, Temp. output terminal
Accessories: Bottom shelf plate, Lid, Drain hose, Overflow hose
Internal dimensions（W×D×H mm）: 300×150×177.5mm
External dimensions（W×D×H mm）: 500×530×500mm
Remarks(dimensions): Bath capacity (effective) 8(6.75)L
Power Source: AC220V 5A
Single-phase with step down transformer
Weight: 50kg
