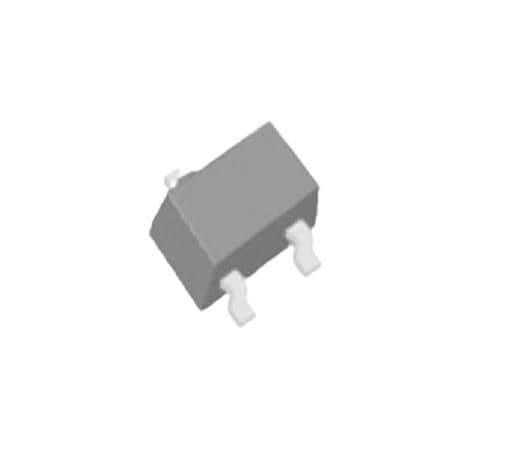

YAGEO XSemi XP6N090N MOSFETs N-CH 60V 2.5A SOT-23S
ຜູ້ຜະລິດ: YAGEO XSemi Model: XP6N090N - ຕິດຕໍ່ພົວພັນ
Width: 2.9 mm
Height: 1.00 mm
Length: 2.4 mm
Fall Time: 4 ns
Rise Time: 6 ns
Technology: Si
Channel Mode: Enhancement
Configuration: Single
Mounting Style: SMD/SMT
Transistor Type: 1 N-Channel
Qg - Gate Charge: 5 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 1.25 W
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 6 ns
Typical Turn-Off Delay Time: 14 ns
Id - Continuous Drain Current: 2.5 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 7.5 S
Rds On - Drain-Source Resistance: 90 mOhms
Vds - Drain-Source Breakdown Voltage: 60 V
Vgs th - Gate-Source Threshold Voltage: 3 V
