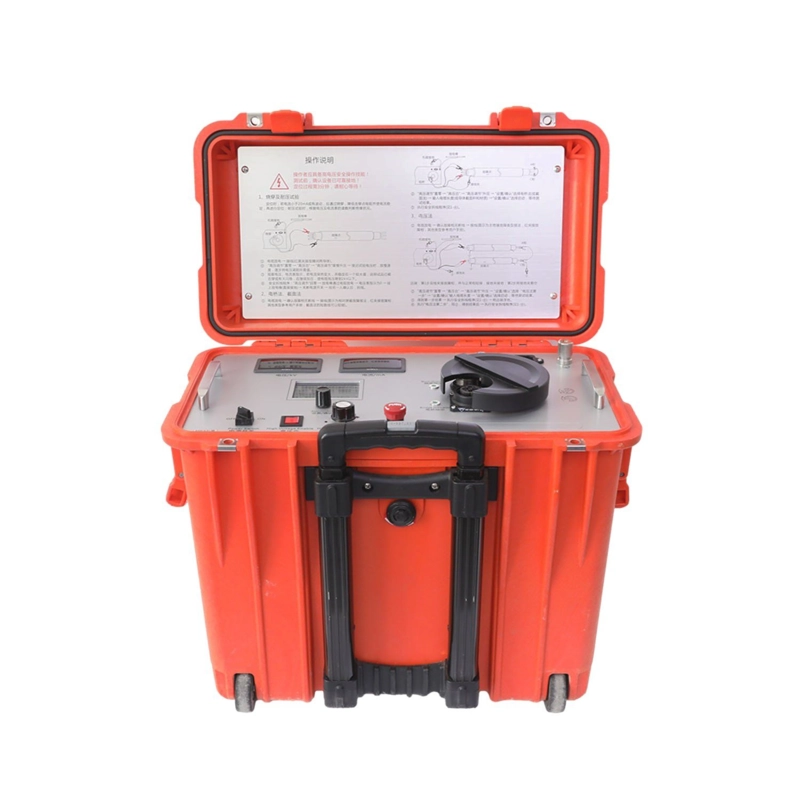

XZH Test XZSC-60Q ສະພາບການຜ່ານດິຈິຕອນສໍາລັບການຫາຕົວບົດຜິດພາດສາຍໄຟຟ້າແຮງສູງ (2kVA)

Burn through mode: The output voltage: 0~60kV Continuous adjustable; Short circuit current: 400mA

A bridge model

The output voltage: 0~4kV Continuous adjustable

Short circuit current: 750mA

LCD The display screen: 3.5 inch TFT Color screen

Positioning accuracy: ±(0.2%·L+1)m

Test range: 1~50000m

Operating keyboard: One key operation

The power supply: 220V AC±10%,50Hz

power: 2kVA,Generator power supply (greater than 2kW)

weight: 29kg

Dimensions (length × width ×height): 30cm´46cm´50cm

Operating temperature: -10ºC~+55ºC
