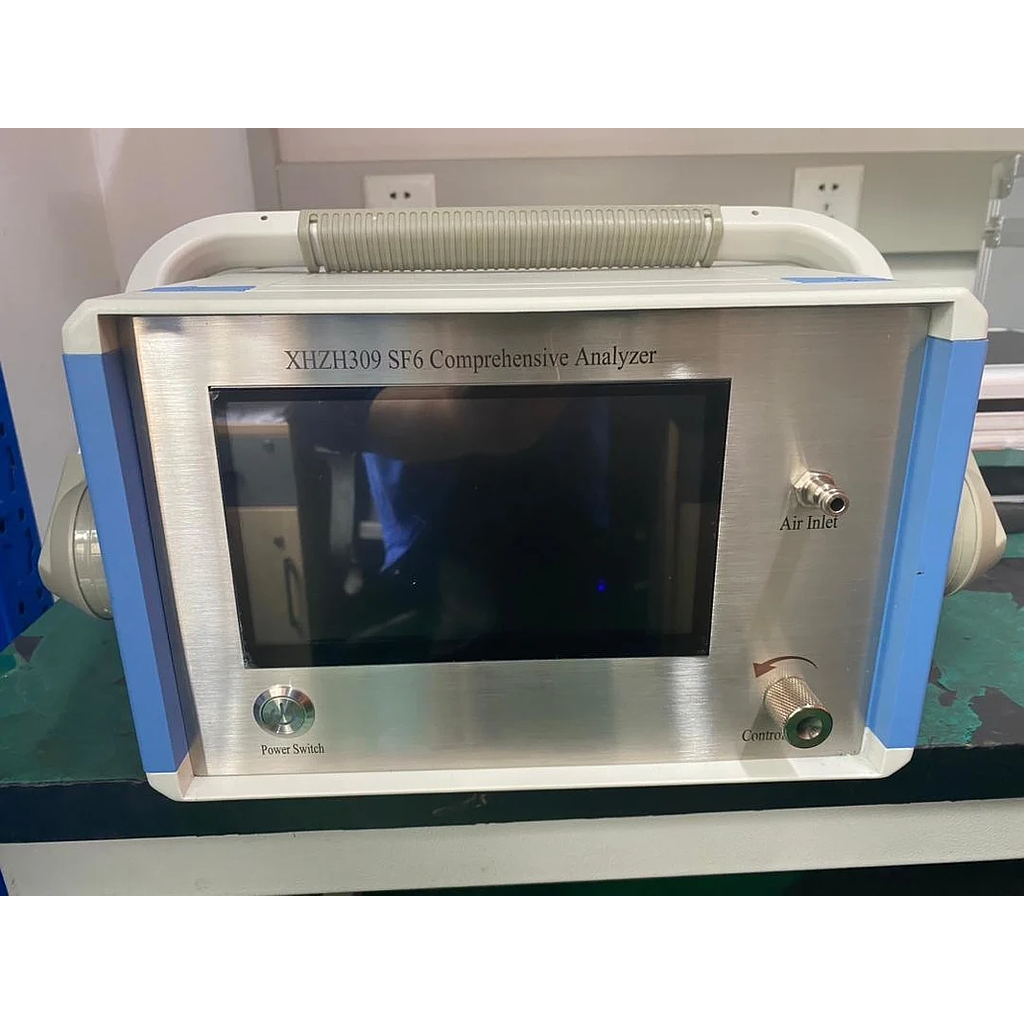

XZH Test XHZH309 ອຸປະກອນວິເຄາະແກັດ SF6 ສໍາລັບການທົດສອບຄວາມຊື່ນ, ຄຸນນະພາບ, ແລະການລະບາຍ (H2S, SO2, CO: 0~100ppm)

Purity

Measuring range: 0% to 100%

Accuracy: ±0.5%

Measuring time: <2 minutes

Dew point measurement range: -80°C ~ +20°C

Accuracy: ±1.0°C (-60°C ~ +20°C), ±2°C (-80°C ~ -60°C)

Response time

(+20°C) 63% for an 5 seconds, 90% of the required 45 seconds (-60°C ~ +20°C)

63% of the required 10 seconds, 90% required 240 seconds (+20°C ~ -60°C)

H₂S

Measurement range: 0 ~ 100ppm

The minimum detectable amount: ≤0.1ppm

Accuracy: ±0.5%

Repeatability: ≤2%

SO₂

Measurement range: 0 ~ 100ppm

The minimum detectable amount: ≤0.1ppm

Accuracy: ±0.5%

Repeatability: ≤2%

CO

Measurement range: 0 ~ 100ppm

The minimum detectable amount: ≤0.1ppm

Accuracy: ±0.5%

Repeatability: ≤2%

Ambient temperature: -30°C ~ +60°C

Humidity: 0 ~ 100% RH

Power: AC 220V / Built-in rechargeable battery

Battery performance: Charging time (20 hours; 10 hours or more)

Weight: 5 kg

Dimensions: 250 × 150 × 300 mm³

Operating temperature: -40°C ~ +80°C
