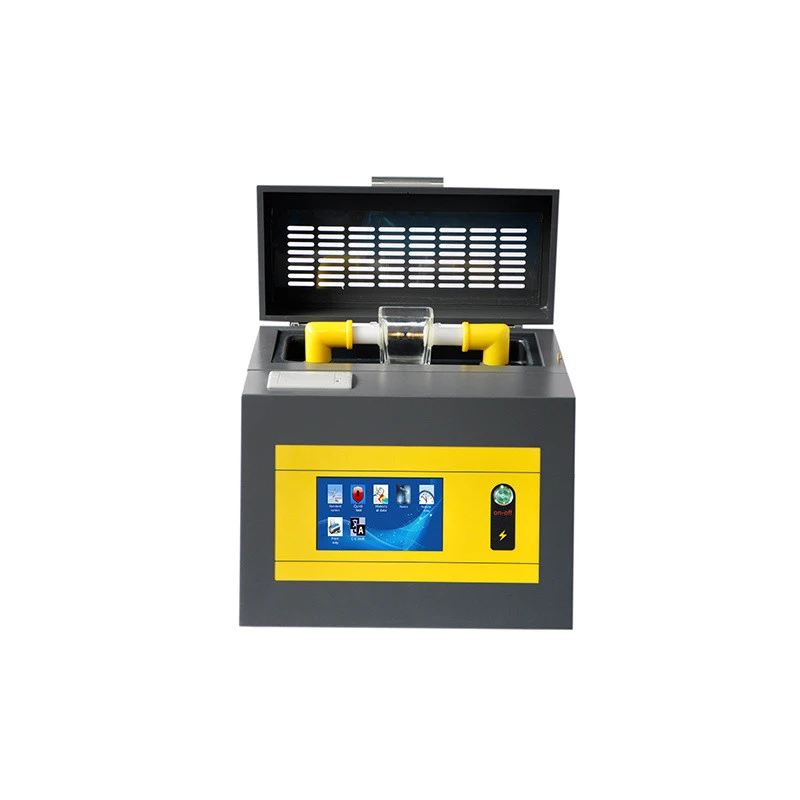

XZH Test XHYY102M ເຄື່ອງທົດສອບຄວາມແຮງຂອງໄດອີເລັກຕຣິກທີ່ແຕກຫັກລົງແຮງດັນ (0–80kV)

Booster capacity 1.5 KVA

Step up speed 0.5kv/s-5.0kv/s (increasing every 0.5) 10 gears optionalError 0.2kv/s

Output voltage 0-80 kV (optional)

Voltage accuracy (2% reading + 2 words)

 Power distortion rate < 1%

Electrode gap standard 2.5mm

Test times 6 times (1-9 times optional)

Static release time 900S(0-9999S optional)

Interval rest time 300S(0-999S optional)

Mixing time 15S(0-999Soptional)

Overall dimension: 410mm × 380mm × 370mm

Conditions of use

Ambient temperature 0-40 ºC

Relative humidity ≤ 85%

Working power AC 220V (1 ± 10%)

Power frequency 50 Hz (1 ± 10%)

Power consumption < 200 W
