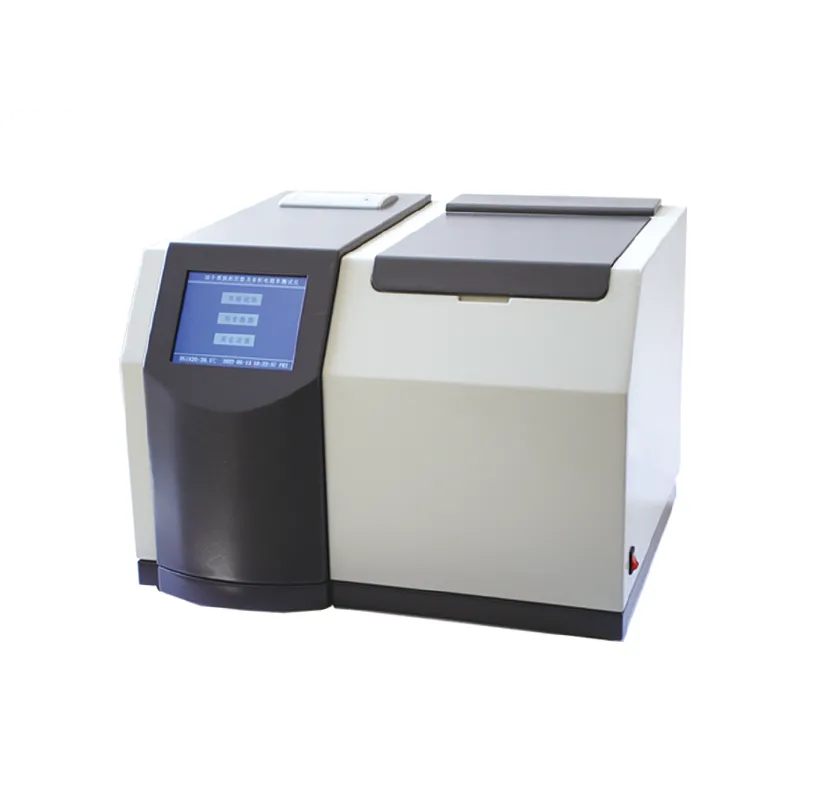

XZH Test XHYS101 ເຄື່ອງທົດສອບ OTD ແລະ DDF Transformer ດ້ວຍໜ້າຈໍສຳຜັດ LCD (5pF ~ 200pF)

Power Supply Voltage: AC 220V±10%

Power Supply Frequency: 50Hz/60Hz ±1%

Measurement Range: Capacitance: 5pF～200pF

Relative Permittivity: 1.000～30.000

Dielectric Loss Factor: 0.00001～100

DC Resistivity: 2.5 MΩm～20 TΩm

Measurement Accuracy: Relative Permittivity: ±(1～10)% of reading

Dielectric Loss Factor: ±(5% of reading ± 0.0002)

DC Resistivity: ±10% of reading

Resolution: Capacitance: 0.01pF

Relative Permittivity: 0.001

Dielectric Loss Factor: 0.00001

Temperature Measurement Range: 40～120℃

Temperature Measurement Error: ±0.5℃

AC Test Voltage: 200～2200V, continuously adjustable, frequency 50Hz

DC Test Voltage: 0～500V, continuously adjustable

Power Consumption: 500W
