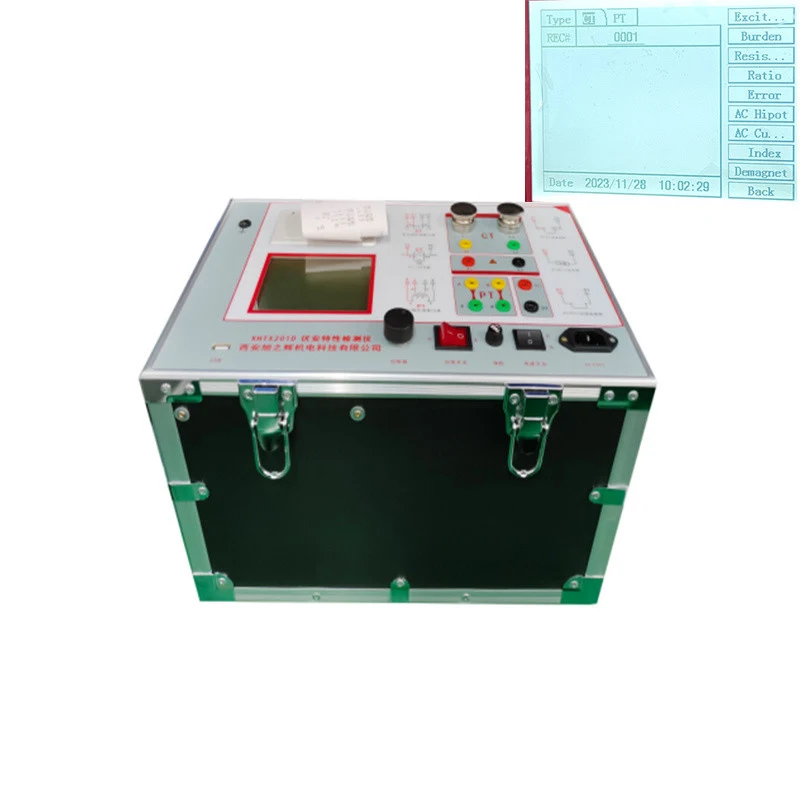

XZH Test XHTX201D ອຸປະກອນວິເຄາະອັດຕາການຕື່ມພະລັງງານຂອງຕົວແປງກຳລັງ CT/PT ເຟືອງຟາສດຽວ (CT: 5~25000A/5A ; PT: 1~500kV)

Operational Power Supply: AC220V±20V, 50~60Hz

Equipment Power Supply Output Waveform: Sine Wave

Single Machine Output Voltage of Excitation Characteristic: 0~2500V

Excitation Output Current: 0~20 A

Single Machine Output Current of  Transformation Ratio Test 0~1000A

CT ratio measurement range 5~25000A/5A(5000A/1A)

PT ratio measurement range 1~500KV

Load Range 5~1000VA

Resistance measurement range 0.1~300Ω

Error: ≤0.5%(0.2%*Reading+0.3%*Range)

Operating Temperature: -10ºC~+40ºC

Relative Humidity:    <90RH%

Altitude ≤1000m

Overall Dimension(Length×Width×Height): 400 *200 * 260(mm)

Weight: ≤23 Kg
