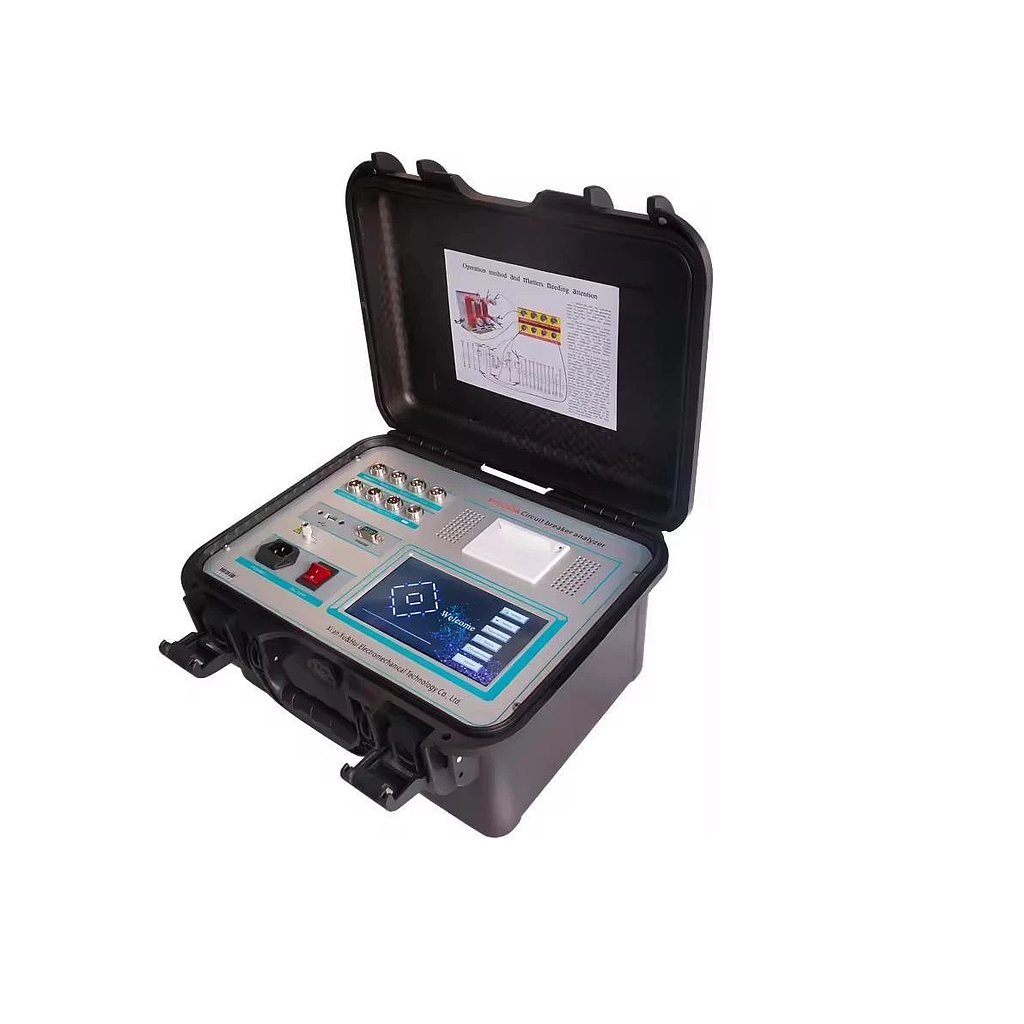

XZH Test XHJJ302AC ອຸປະກອນວິເຄາະຕົວຕັດກົດໄຟຟ້າແຮງສູງ (0~15A)

Relative humidity: ≤90%

Use environment: -10ºC~+50ºC

Energy storage motor power supply: output voltage: 25~265V continuously adjustable, output current: ≤ 15A (short time)

External trigger voltage: AC/DC10-300V, current ≤120A

DC power supply: output voltage: 25~265V continuously adjustable, output current: ≤ 15A (short time)

Instrument power supply: AC/DC 220V ± 10%; 50Hz ± 2%

Printer: High-speed thermal printer

Data storage: 100 sets of measurement data can be stored

Display: 320×240 LCD screen with adjustable contrast

Current measurement range: 0~15A, resolution: 0.01A, the display current value is the maximum coil current.

Sensor measuring range: linear displacement sensor 50mm, resolution: 0.1mm, stroke 0.1~50mm

Stroke measurement: moving contact stroke (stroke)

Speed measurement range: 1mm sensor 0.01~25.00m/s,

Speed measurement: just opening (just closing) speed
